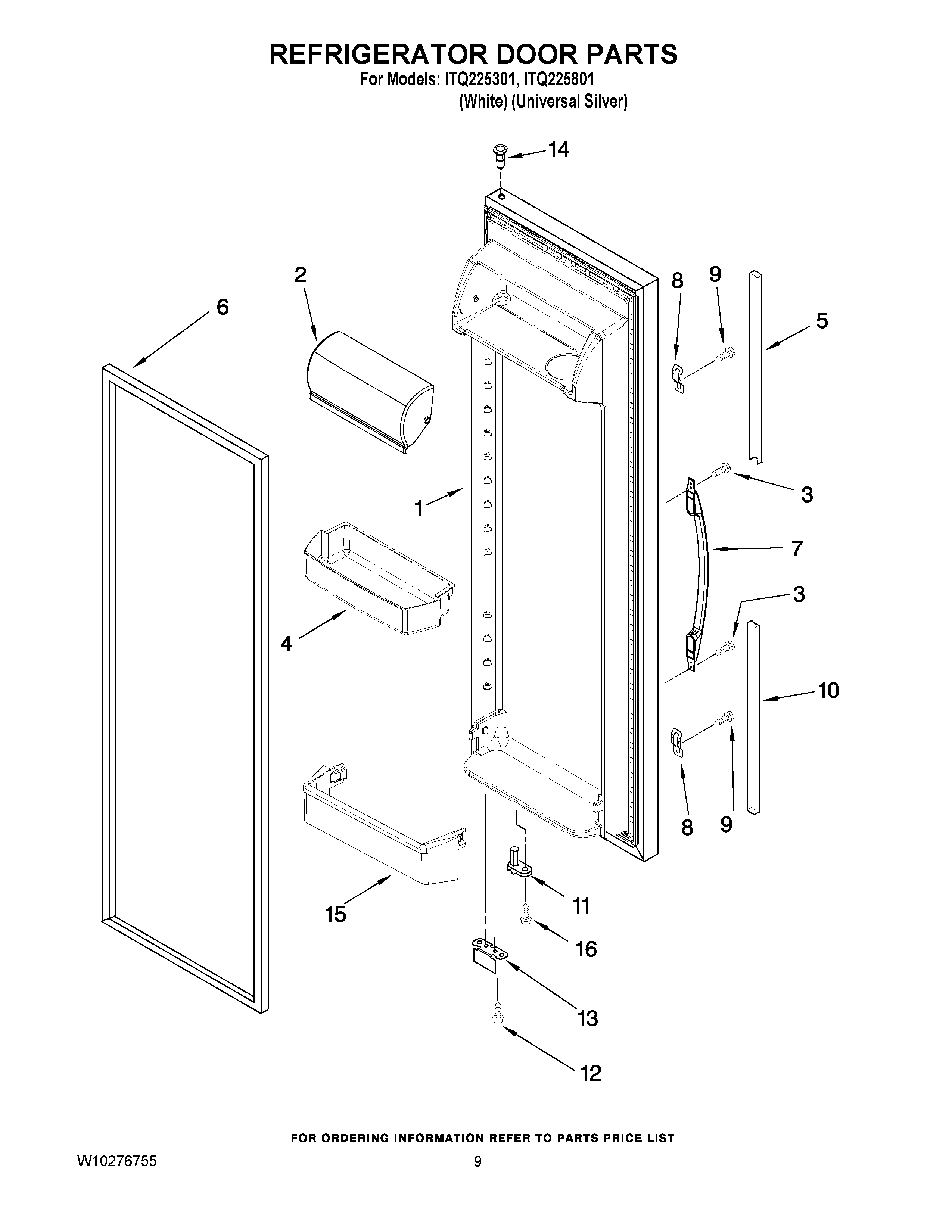

ITQ225801 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Universal Silver)
1L2309598W Whirlpool Refrigerator Door FIP White
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5Extension, Top (Black)
5WP2194706W Whirlpool Refrigerator Extension
62159073 Whirlpool Refrigerator Door Gasket
62159081 Whirlpool Refrigerator Door Gasket
7Handle (White)
7Handle (Black)
8WP2195327 Whirlpool Refrigerator Clip
9WP3400852 Whirlpool Refrigerator Screw
10Extension, Bottom (White)
10Extension, Bottom (Black)
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13BRACKET, DOOR STOP (SILVER)
13WP2206629B Whirlpool Refrigerator Bracket
14WP2182181 Whirlpool Refrigerator Thimble
14WP2309941 Whirlpool Refrigerator Door Bar Trim
16WP3400012 Whirlpool Refrigerator Screw
