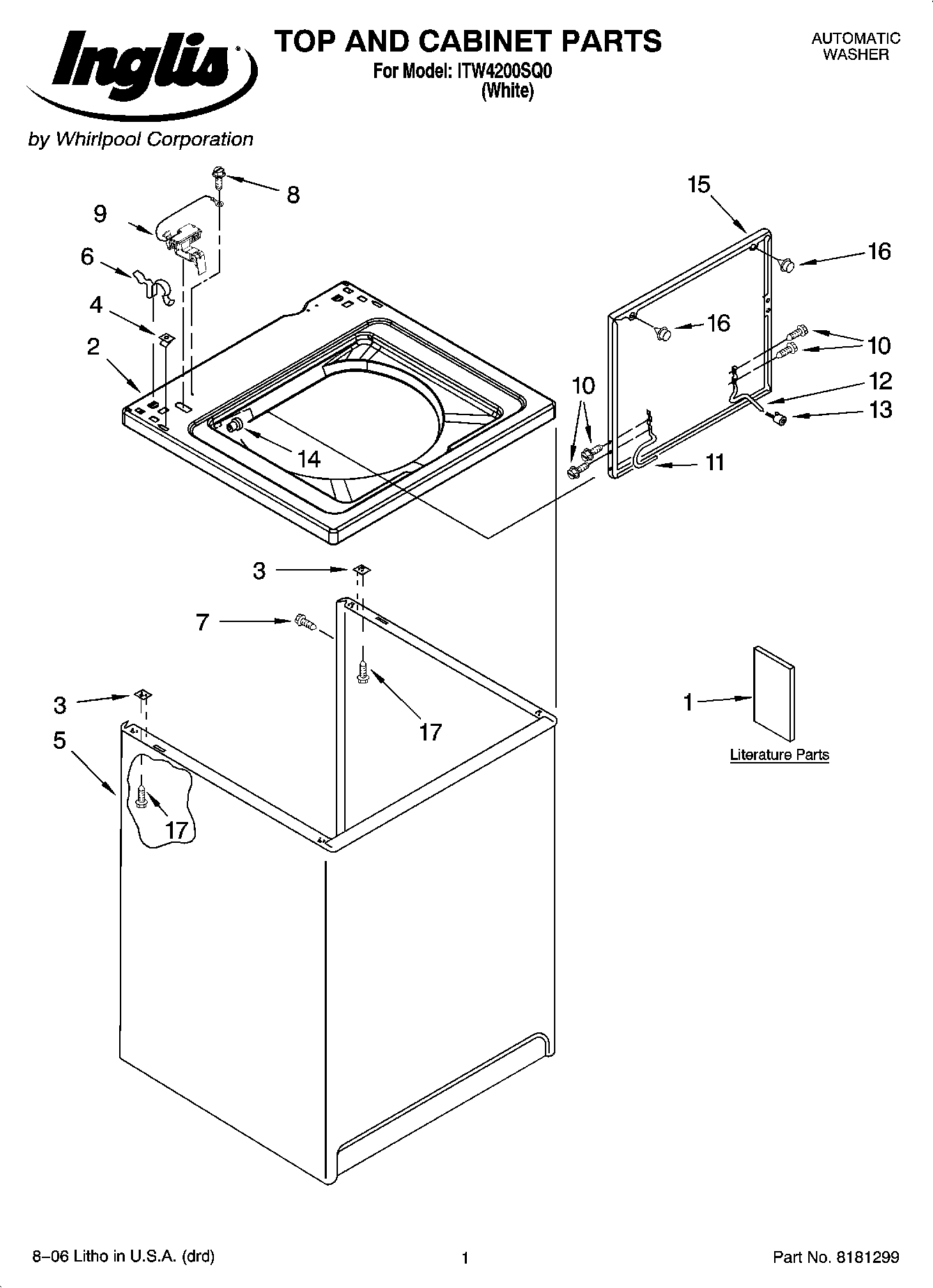

ITW4200SQ0 01 – TOP AND CABINET PARTS

ITW4200SQ0 01 – TOP AND CABINET PARTS

Written by

in

ITW4200SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Feature Sheet
1Use & Care Guide
1Energy Guide
1Wiring Diagram
1Installation Instructions
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP308685 Whirlpool Microwave Screw
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10SCREW
118318088 Whirlpool Hinge Assembly
12WP54583 Whirlpool Hinge
13Bumper, Lid Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WPW10193857 Whirlpool Lid Assembly
16WP9724509 Whirlpool Bumper
17WP3390631 Whirlpool Screw
