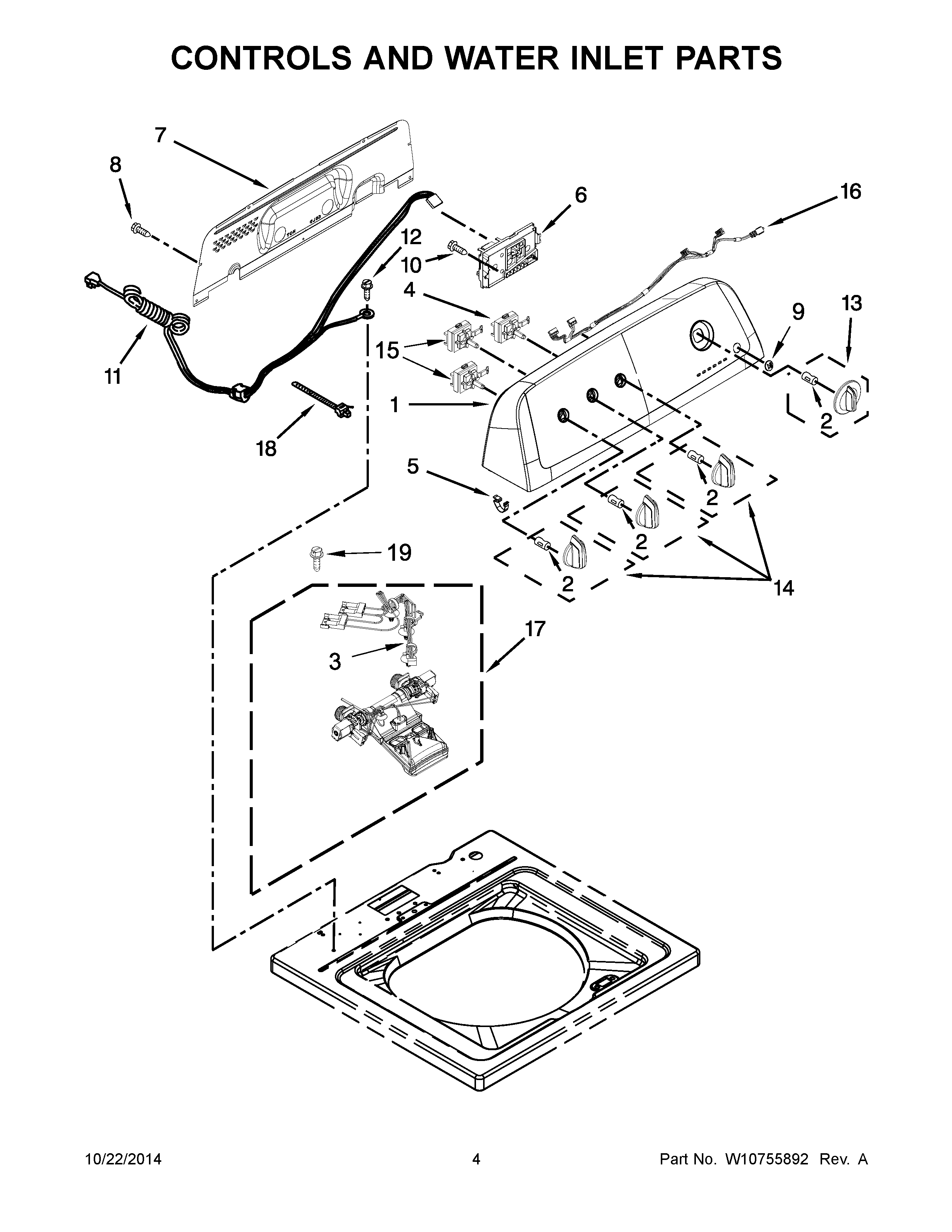

ITW4771DQ0 03 – CONTROLS AND WATER INLET PARTS

ITW4771DQ0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

ITW4771DQ0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3W10876654 Whirlpool Wire Harness
4W11168256 Whirlpool Cycle Switch
5WP8312709 Whirlpool Endcap Clip
6W10671338-includeCORE Whirlpool W10671338 Refrigerator Electronic Control Board + Core
7W10409320 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10251309 Whirlpool Push Button
10WP8281163 Whirlpool Refrigerator Screw
11WPW10525192 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13WPW10711289 Whirlpool Washer Control Knob Dryer
14WPW10453947 Whirlpool Knob
15WPW10414398 Whirlpool Cycle Switch
16W10491753 Whirlpool Wire Harness
17WPW10683603 Whirlpool Dishwasher Water Inlet Valve
18WPW10339879 Whirlpool Wire Tie
19WPW10213953 Whirlpool Screw
