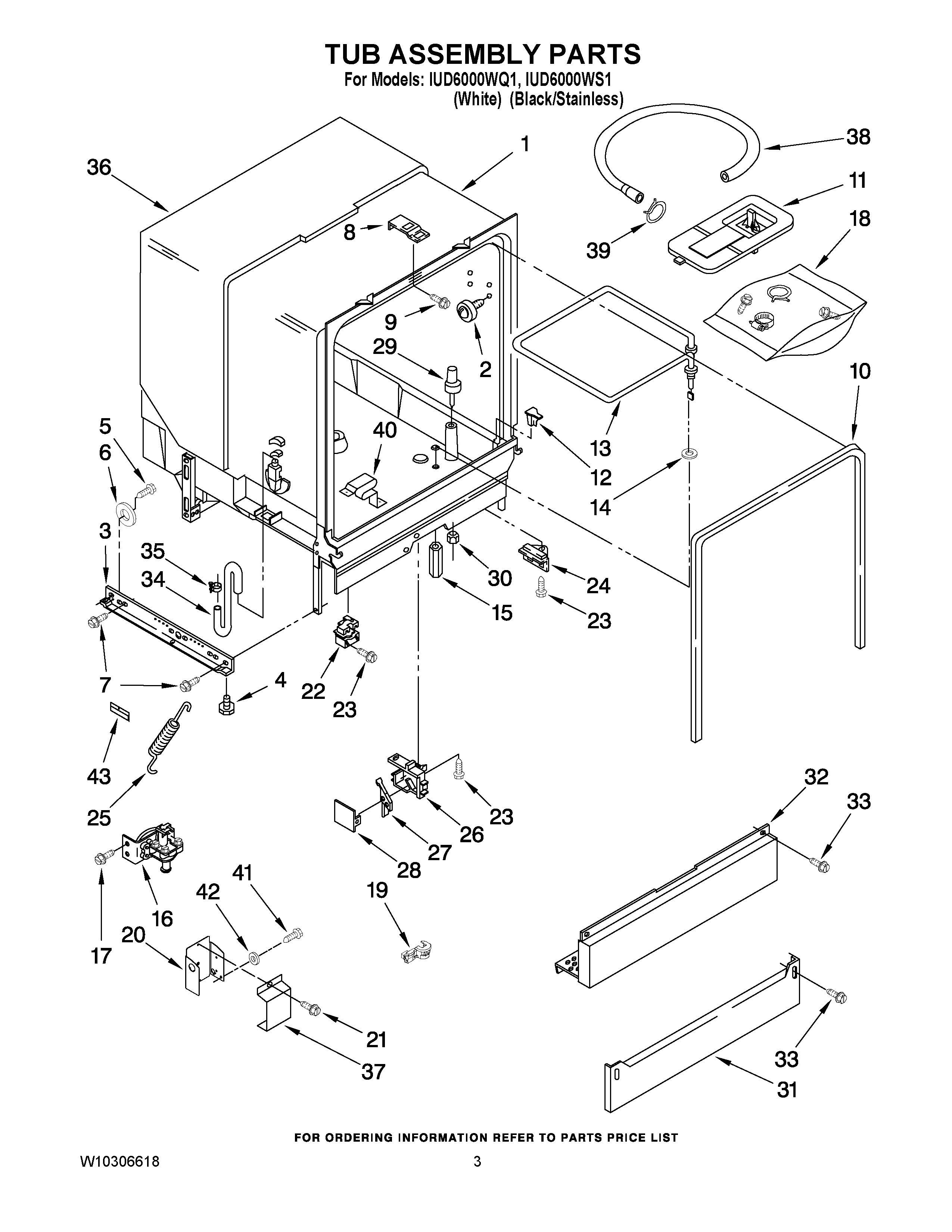

IUD6000WQ1 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	Tub Assembly
2	WP8528831 Whirlpool Dishwasher Mounting
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	WPW10477552 Whirlpool Dishwasher Terminal Nut
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
19	W11384788 Whirlpool Dishwasher Relief Strainer
20	Terminal Box
22	W10102260 Whirlpool Dishwasher Motor Relay
23	WP304231 Whirlpool Dishwasher Screw
24	WP3368928 Whirlpool Dishwasher Fuse
25	WP3379383 Whirlpool Dishwasher Spring
26	Housing, Float Switch
27	Switch, Float
28	8318219 Whirlpool Dishwasher Cover Housing
29	WP8519552 Whirlpool Dishwasher Float
30	Nut
31	WP3379920 Whirlpool Dishwasher Toe Panel
31	WP3379921 Whirlpool Dishwasher Toe Panel
32	Access Panel (White)
32	PANEL, ACCESS (STAINLESS)
33	WP302868 Whirlpool Screw
34	Hose, Inlet
35	WP596669 Whirlpool Hose Clamp
36	W11086533 Whirlpool Dishwasher Shield
37	300068 Whirlpool Dishwasher Cover Assembly
38	WP3374077 Whirlpool Dishwasher Drain Hose
39	WP356138 Whirlpool Hose Clamp
40	3379740 Whirlpool Dishwasher Heater Support
41	WP3400014 Whirlpool Dishwasher Screw
42	WP3378128 Whirlpool Dishwasher Washer
43	Friction Pad (Velcro)
