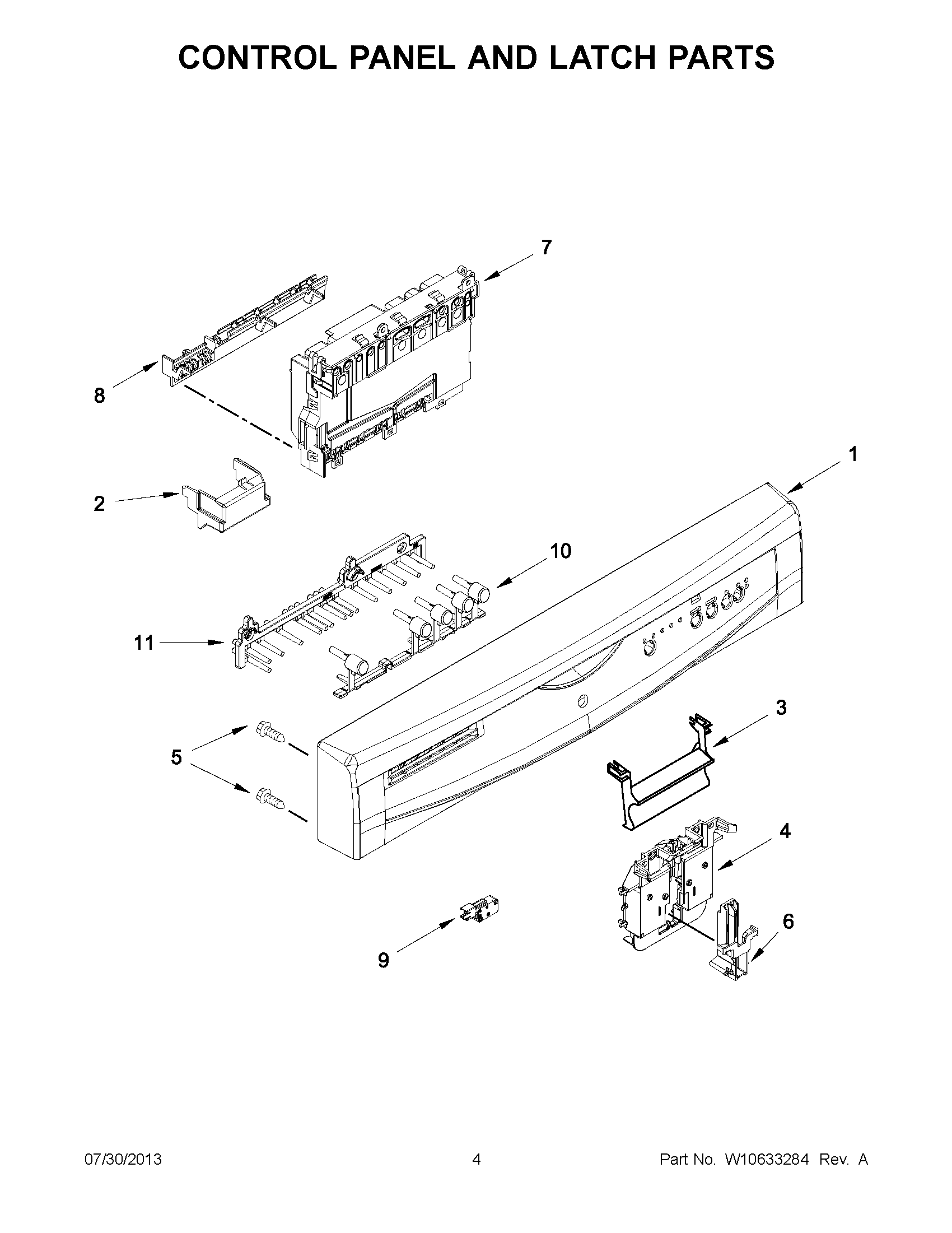

IUD6100BB1 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES INSERT)
2	W10783730 Whirlpool Dishwasher Connector
3	WP8269323 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524471 Whirlpool Dishwasher Actuator
7	W10635099 Whirlpool Electronic Control Module
8	WPW10372484 Whirlpool Dishwasher Brace
9	WPW10274880 Whirlpool Switch
10	W10274843 Whirlpool Dishwasher Button
11	PIPE, LIGHT
