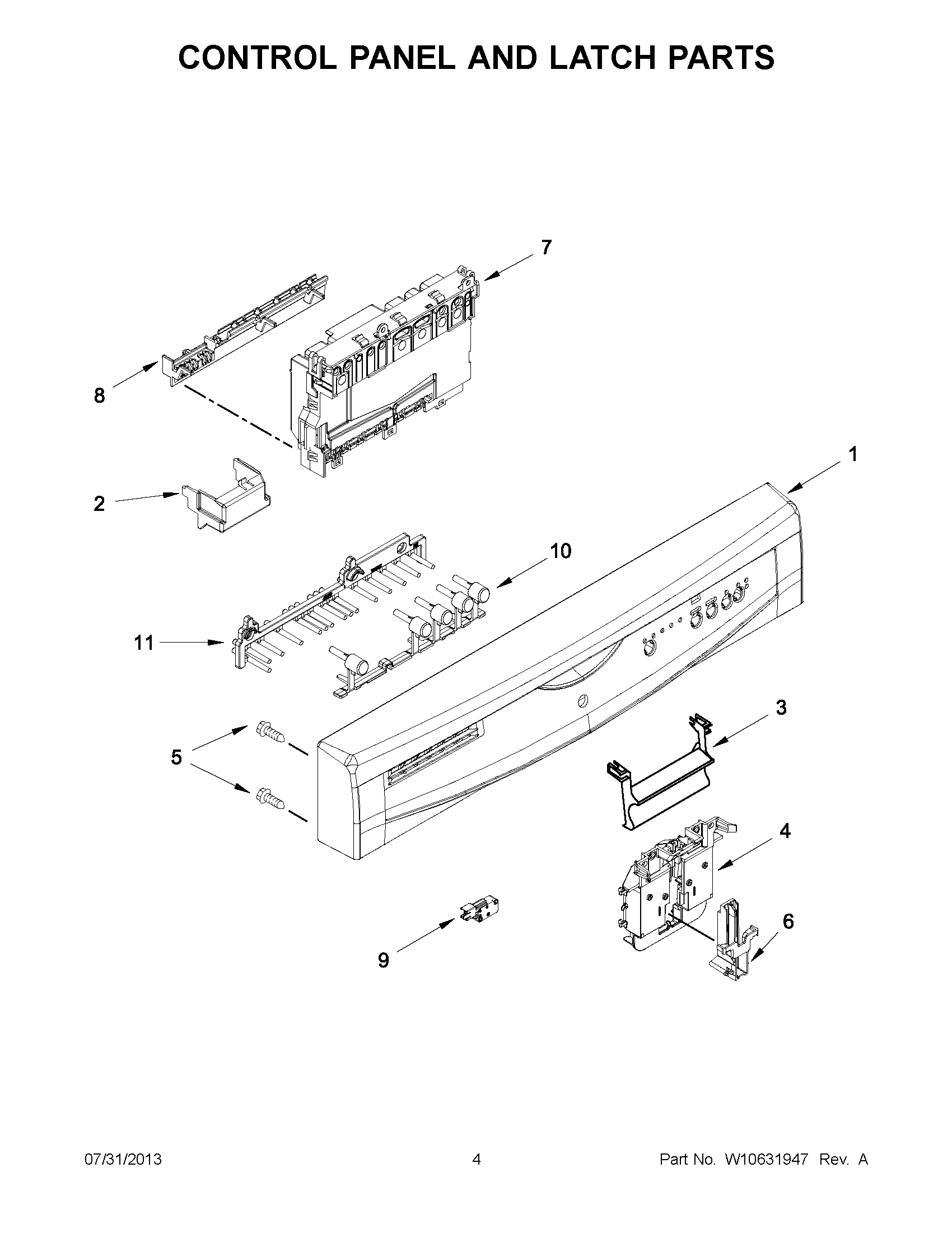

IUD6100BB2 02 – CONTROL PANEL AND LATCH PARTS

IUD6100BB2 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

IUD6100BB2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY
2W10783730 Whirlpool Dishwasher Connector
3WP8269323 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W10906419-includeCORE Whirlpool W10906419 Dishwasher Electronic Control Board Plus Core
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10W10274843 Whirlpool Dishwasher Button
11PIPE, LIGHT
