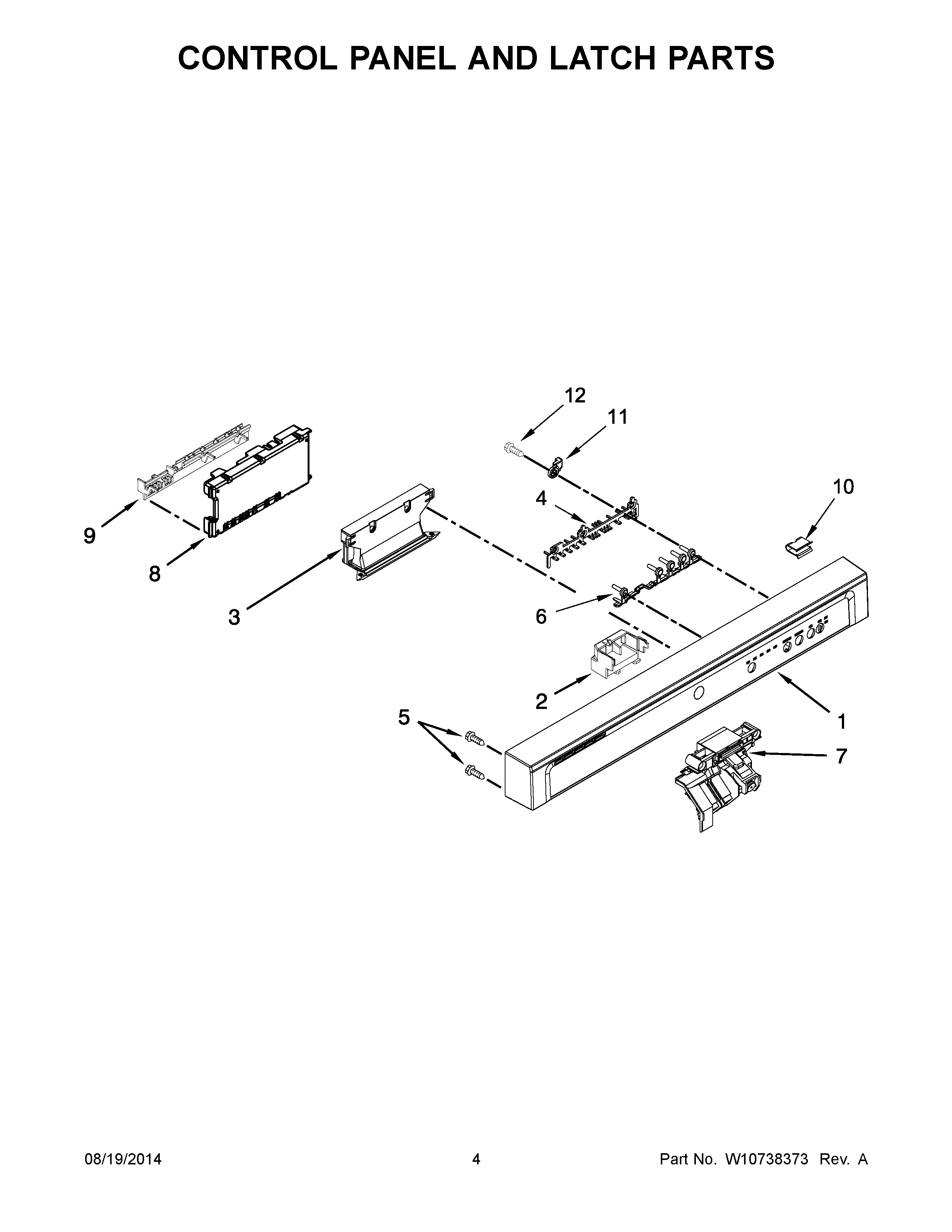

IUD7070DS0 03 – CONTROL PANEL AND LATCH PARTS

IUD7070DS0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

IUD7070DS0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10733633 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3W11568629 Whirlpool Dishwasher Handle
4W10839423 Whirlpool Dishwasher Guide
5W11232015 Whirlpool Dishwasher Screw
6W10849355 Whirlpool Dishwasher Button
7WPW10653840 Whirlpool Door Latch
8W10906419-includeCORE Whirlpool W10906419 Dishwasher Electronic Control Board Plus Core
9WPW10372484 Whirlpool Dishwasher Brace
10W10815836 Whirlpool Dishwasher Clip
11W10629551 Whirlpool Dishwasher Clip
12W11700520 Whirlpool Screw
