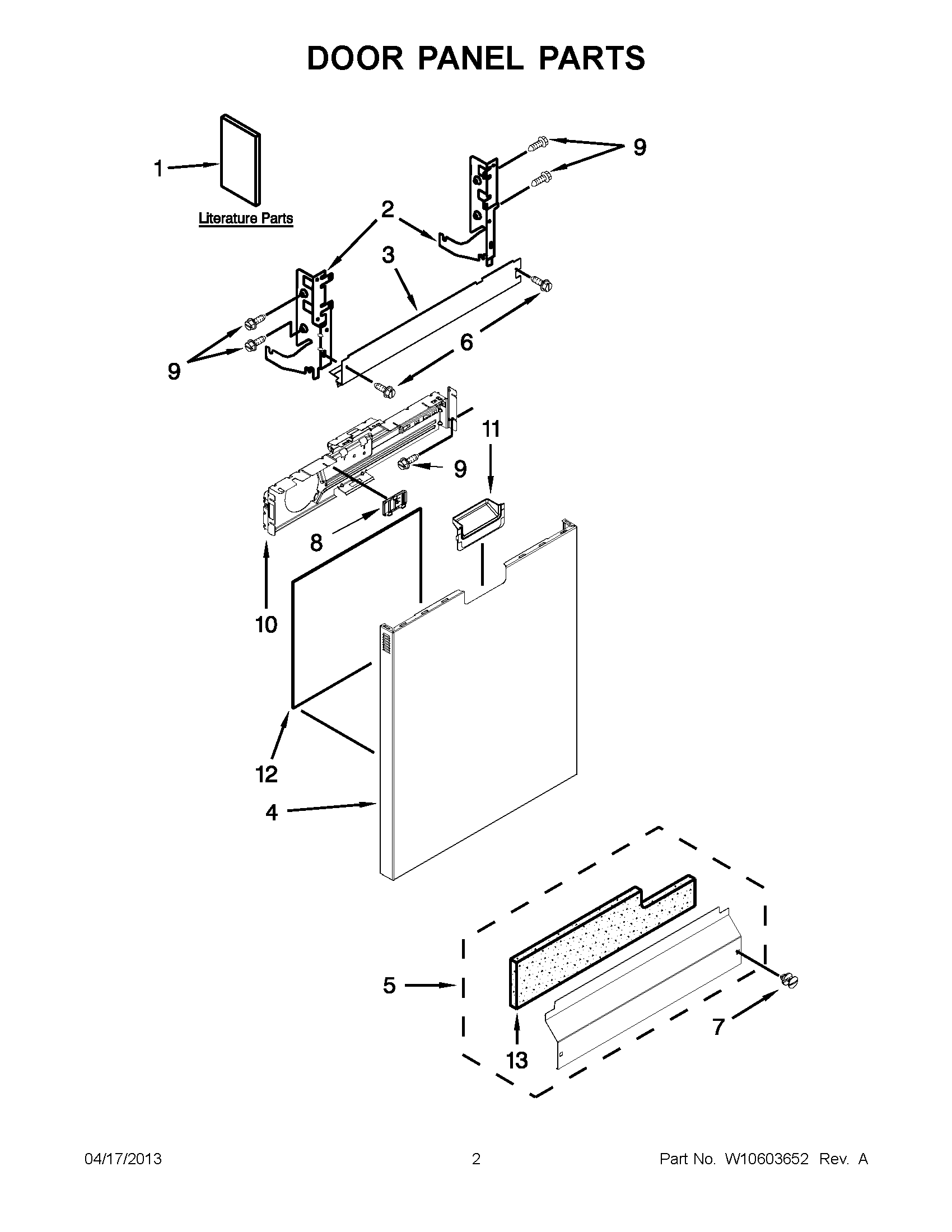

IUD7500BS1 01 – DOOR AND PANEL PARTS

IUD7500BS1 01 – DOOR AND PANEL PARTS

Written by

in

IUD7500BS1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE, ENGLISH/FRENCH
1TECH SHEET, ENGLISH
1INSTRUCTIONS, INSTALLATION
1ENERGY GUIDE
1TECH SHEET, FRENCH
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10508945 Whirlpool Panel
5W10827608 Whirlpool Dishwasher Control Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W10463662 Whirlpool Dishwasher Spacer Plate
9WP3400071 Whirlpool Screw
10WPW10350242 Whirlpool Dishwasher Control Bracket
11POCKET ASSY (BLACK)
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
