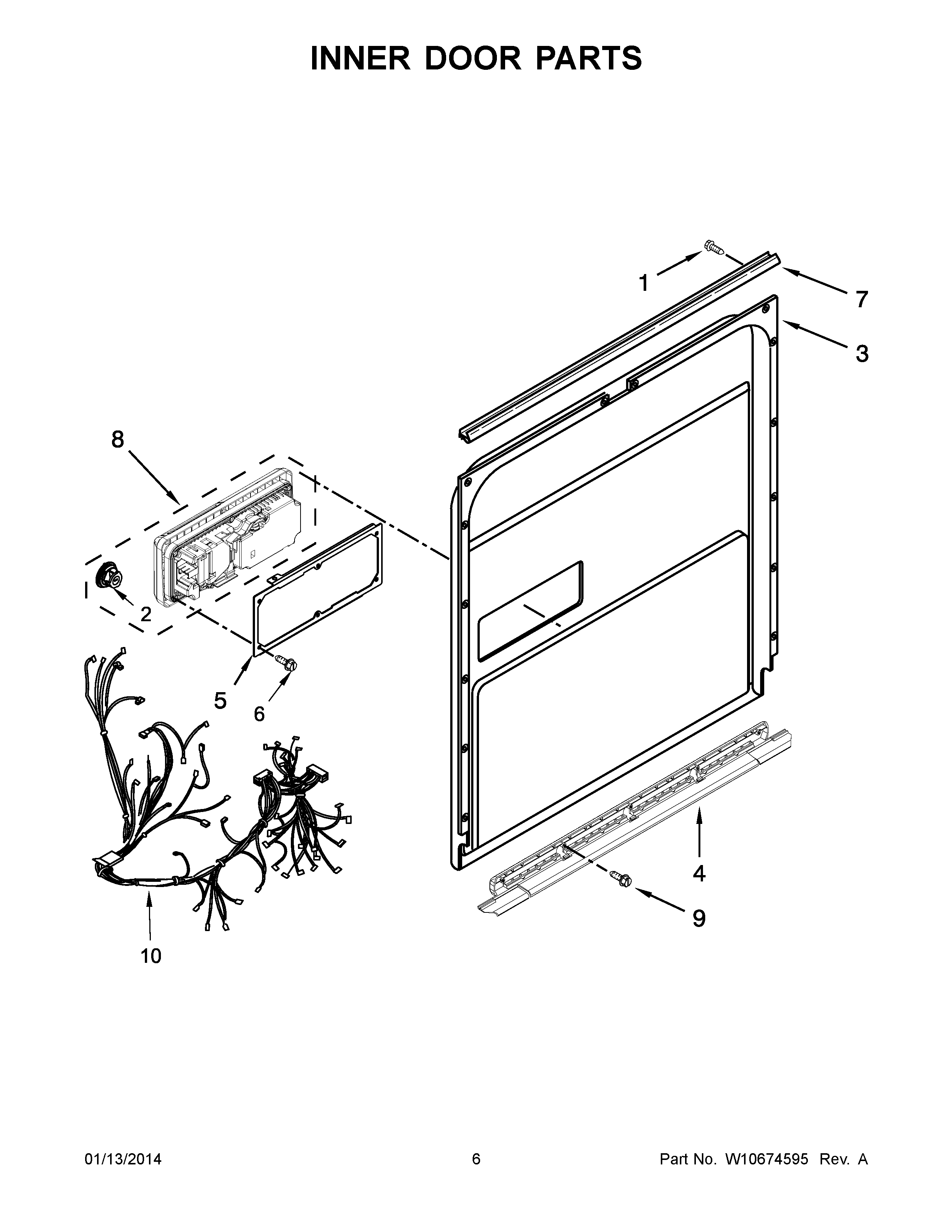

IUD7500BS2 04 – INNER DOOR PARTS

IUD7500BS2 04 – INNER DOOR PARTS

Written by

in

IUD7500BS2 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WPW10524911 Whirlpool Dishwasher Cap
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
6WPW10177098 Whirlpool Dishwasher Screw
7WPW10195007 Whirlpool Dishwasher Seal
8DISPENSER (DISHWASHER)
9W11631670 Whirlpool Screw
10WPW10612062 Whirlpool Dishwasher Wire Harness
