IUD7555DS1 02 – DOOR PANEL PARTS

IUD7555DS1 02 – DOOR PANEL PARTS

Written by

in

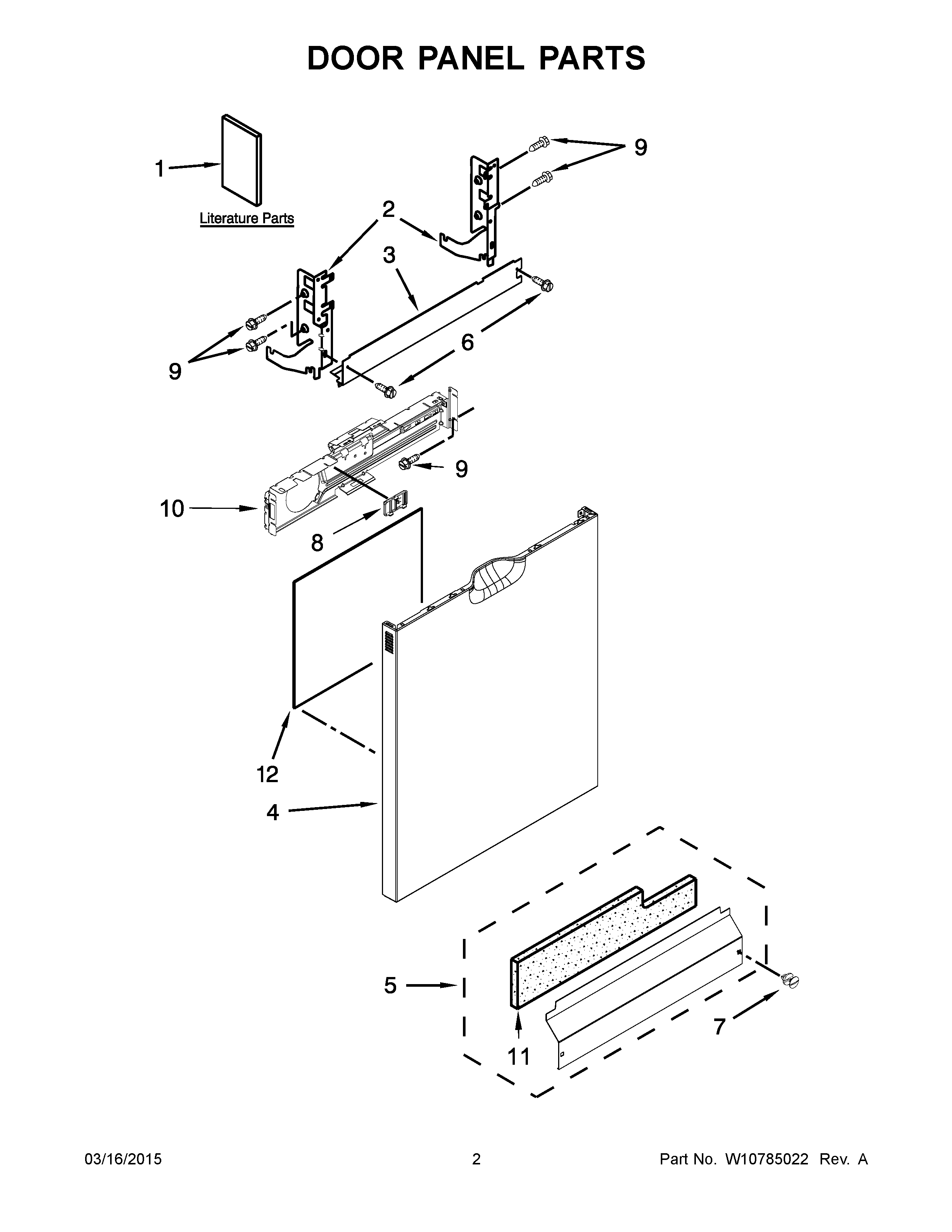

IUD7555DS1 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
1AENERGY GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10671859 Whirlpool Dishwasher Control Panel
5W10827608 Whirlpool Dishwasher Control Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W10463662 Whirlpool Dishwasher Spacer Plate
9WP3400071 Whirlpool Screw
10WPW10350242 Whirlpool Dishwasher Control Bracket
11SHIELD
12WPW10073520 Whirlpool Dishwasher Insulation Pad
