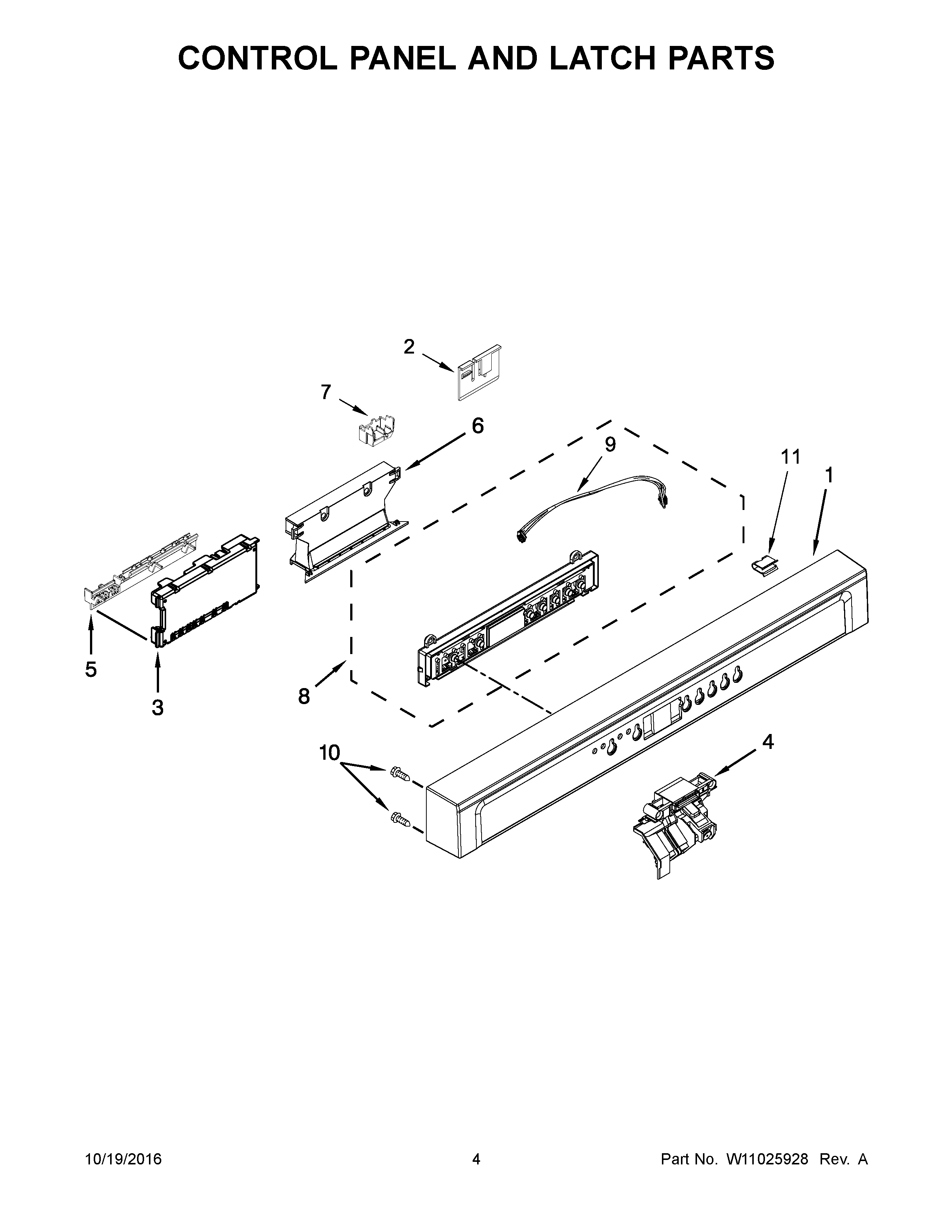

IUD7555DS3 03 – CONTROL PANEL AND LATCH PARTS

IUD7555DS3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

IUD7555DS3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10655256 Whirlpool Dishwasher Console
2W11256107 Whirlpool Dishwasher Clip
3W11108143-includeCORE Whirlpool W11108143 Dishwasher Electronic Control Board + Core
4WPW10653840 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6W11568629 Whirlpool Dishwasher Handle
7W10783730 Whirlpool Dishwasher Connector
8W10671804 Whirlpool Dishwasher UI Housing
9W11028004 Whirlpool Dishwasher Wire
10WPW10348408 Whirlpool Dishwasher Screw
11W10815836 Whirlpool Dishwasher Clip
