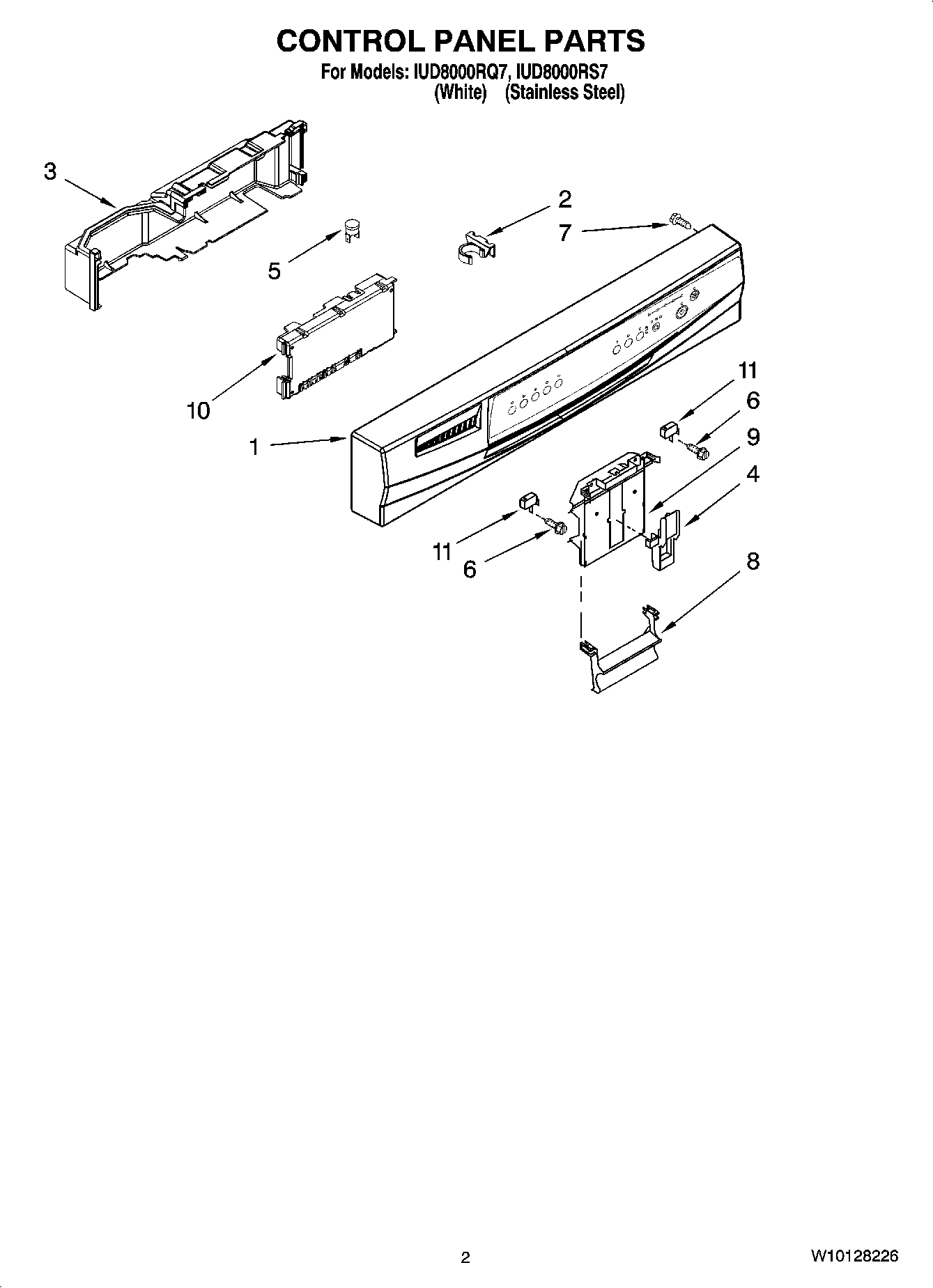

IUD8000RS7 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. (Includes Active Overlay & Insert) (Black)
1	Console Asm. (Includes Active Overlay & Insert) (White)
2	Clip, BI-Metal
3	Cover Control Shield Assembly
4	WP8524471 Whirlpool Dishwasher Actuator
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WP3400412 Whirlpool Dishwasher Screw
7	WPW10348409 Whirlpool Screw
8	WP8269323 Whirlpool Dishwasher Handle
9	8193882 Whirlpool Dishwasher Primary Latch Bolt
10	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
11	WP8269209 Whirlpool Door Switch
