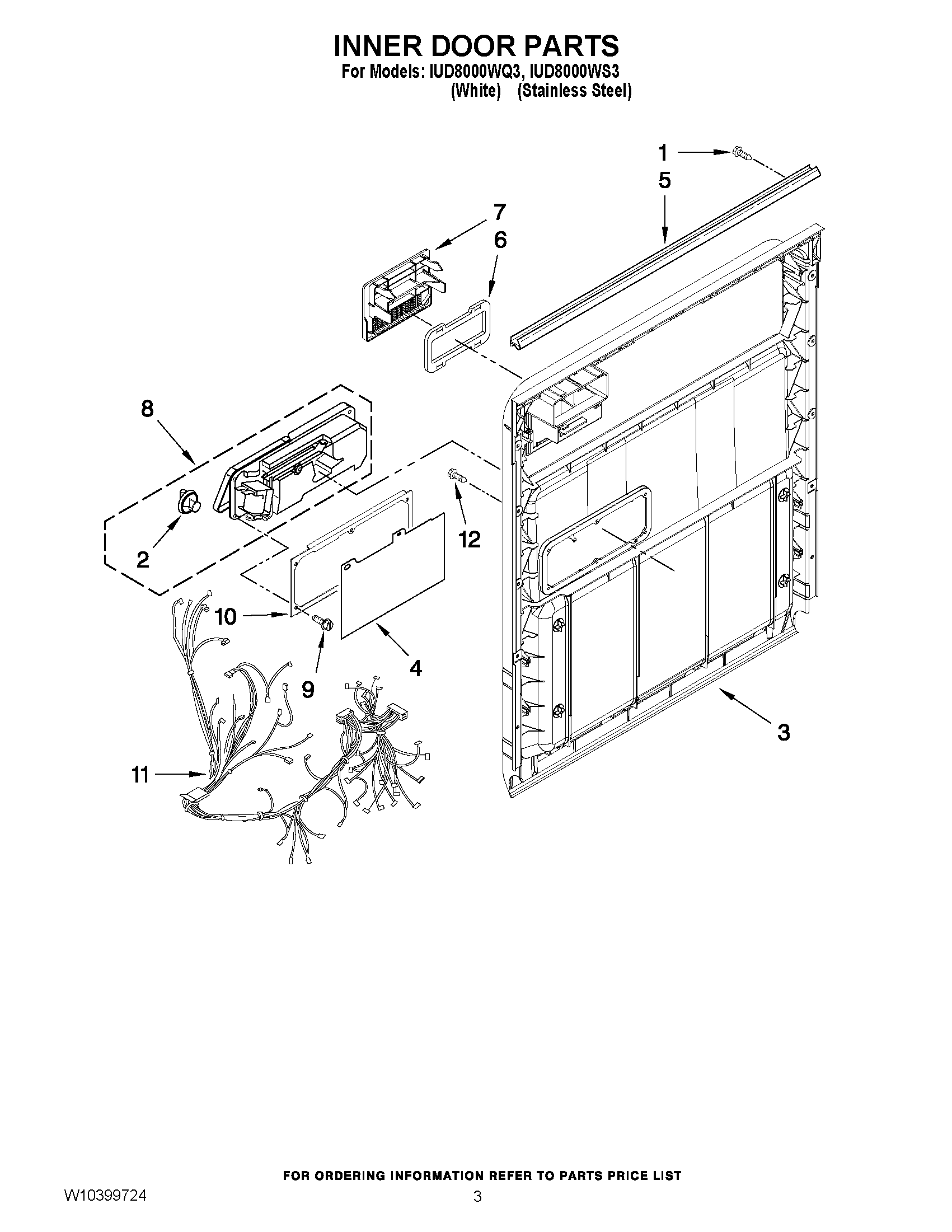

IUD8000WQ3 03 – INNER DOOR PARTS

Products

Position	Product
2	WP8558307 Whirlpool Rinse Aid Dispenser Cap
3	WPW10254547 Whirlpool Dishwasher Inner Door
4	WP8531865 Whirlpool Dishwasher Door Shield
5	WP8269296 Whirlpool Dishwasher Seal
6	WPW10254545 Whirlpool Dishwasher Gasket
7	WPW10254548 Whirlpool Dishwasher Deflector
8	WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9	WPW10177098 Whirlpool Dishwasher Screw
10	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11	WIRING HARNESS MAIN
12	WPW10348413 Whirlpool Dishwasher Screw
