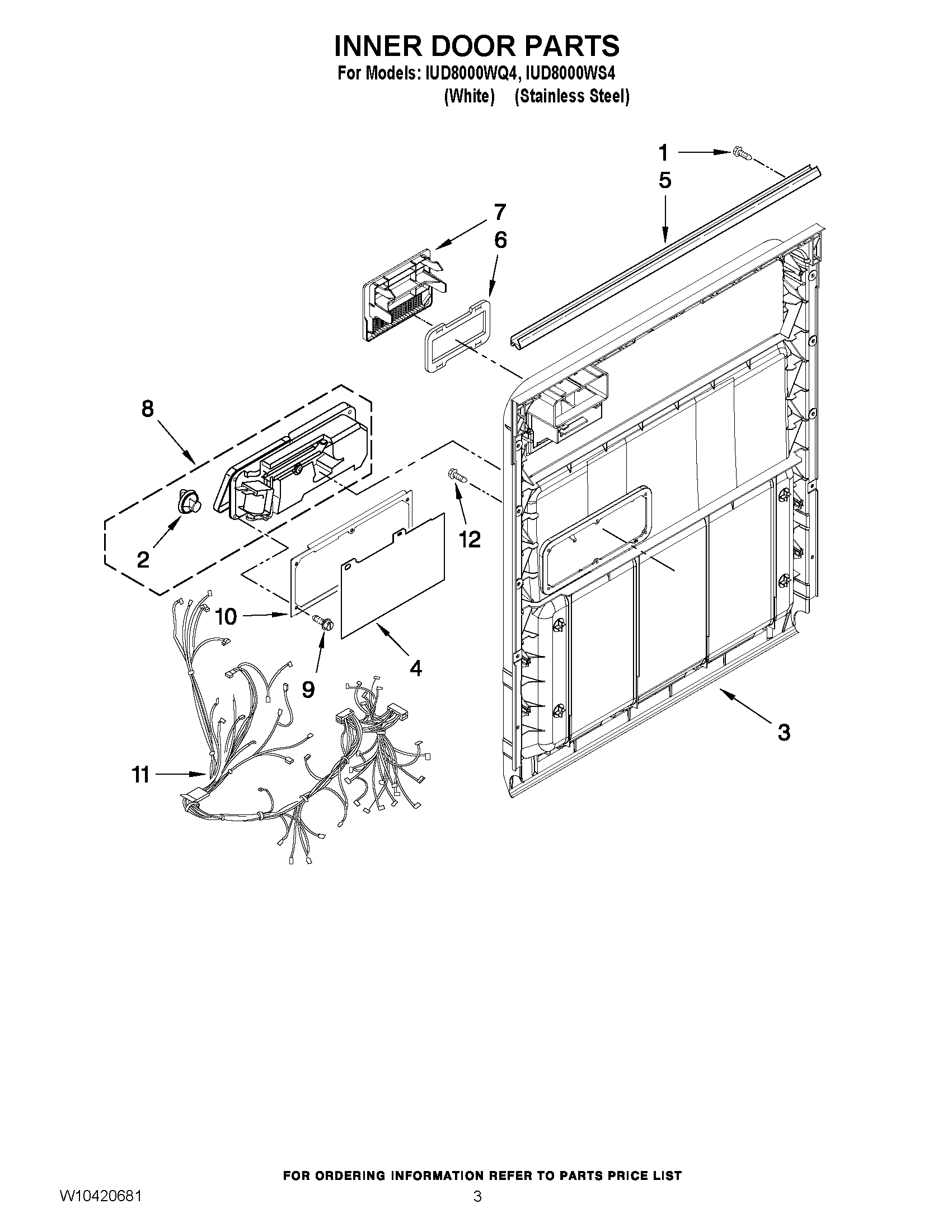

IUD8000WQ4 03 – INNER DOOR PARTS

IUD8000WQ4 03 – INNER DOOR PARTS

Written by

in

IUD8000WQ4 03 – INNER DOOR PARTS

Products

PositionProduct
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3WPW10254547 Whirlpool Dishwasher Inner Door
4W10385977 Whirlpool Dishwasher Cover Assembly
5WP8269296 Whirlpool Dishwasher Seal
6WPW10254545 Whirlpool Dishwasher Gasket
7WPW10254548 Whirlpool Dishwasher Deflector
8WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9WPW10177098 Whirlpool Dishwasher Screw
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WIRING HARNESS MAIN
12WPW10348413 Whirlpool Dishwasher Screw
