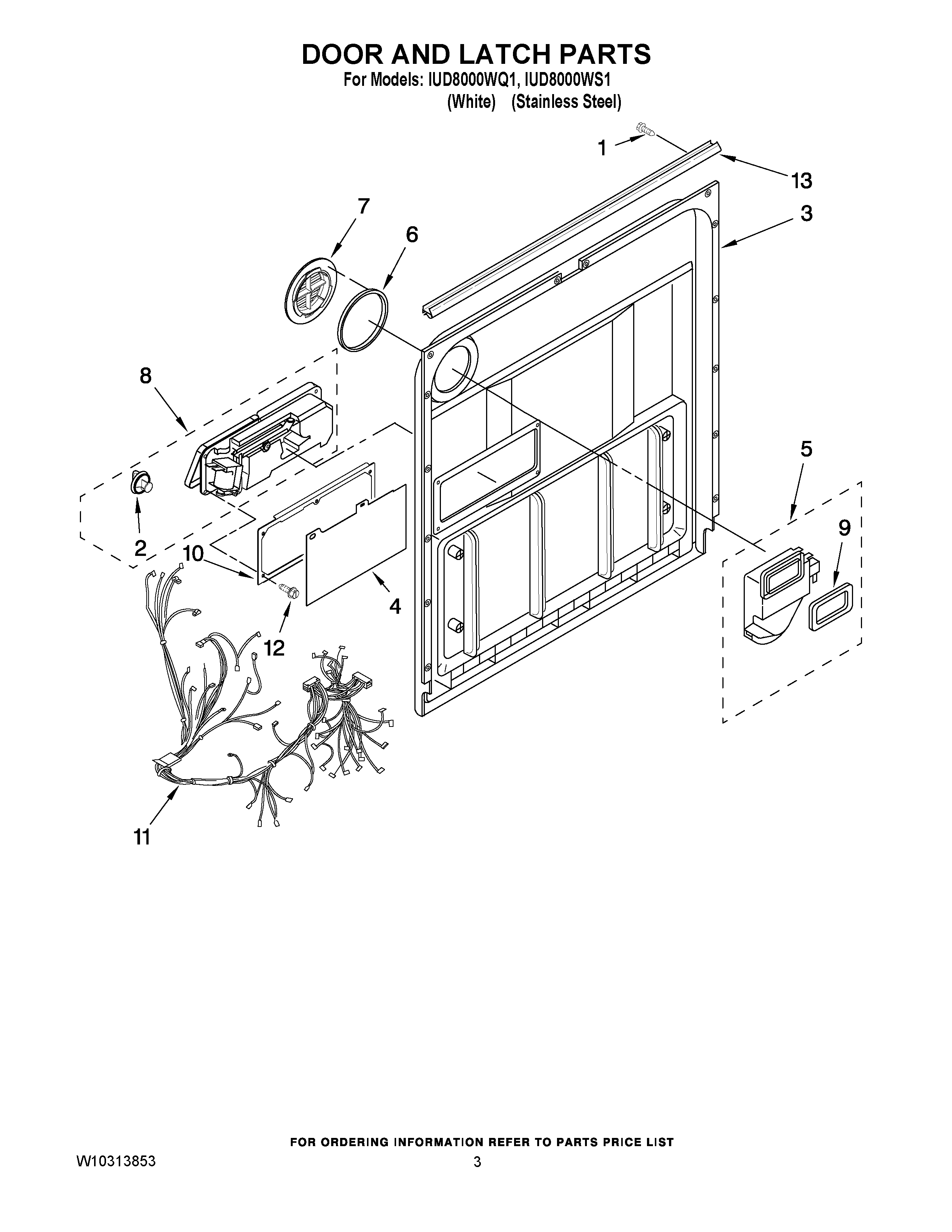

IUD8000WS1 03 – DOOR AND LATCH PARTS

IUD8000WS1 03 – DOOR AND LATCH PARTS

Written by

in

IUD8000WS1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3WP3378179 Whirlpool Inner Door Panel
4WP8531865 Whirlpool Dishwasher Door Shield
5WP8558980 Whirlpool Dishwasher Vent
7Deflector, Vent (Also Order Item 6)
8WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9WP8269259 Whirlpool Air Vent Gasket
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WIRING HARNESS MAIN
12WPW10177098 Whirlpool Dishwasher Screw
13WP8269296 Whirlpool Dishwasher Seal
