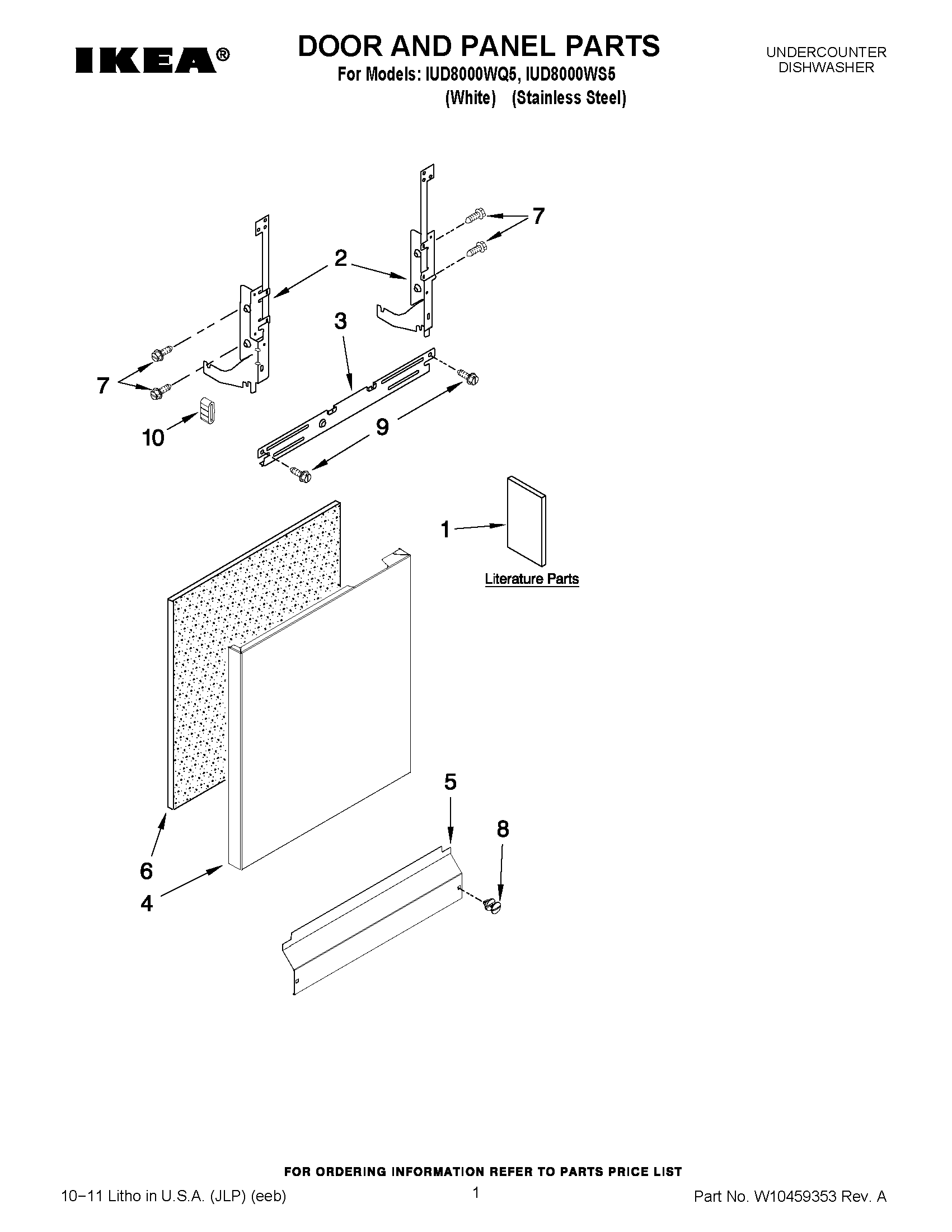

IUD8000WS5 01 – DOOR AND PANEL PARTS

IUD8000WS5 01 – DOOR AND PANEL PARTS

Written by

in

IUD8000WS5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10274896 Whirlpool Dishwasher Panel
4WPW10274902 Whirlpool Dishwasher Control Panel
5PANEL
5WPW10441007 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WPW10109200 Whirlpool Screw
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WP8268961 Whirlpool Friction Pad
