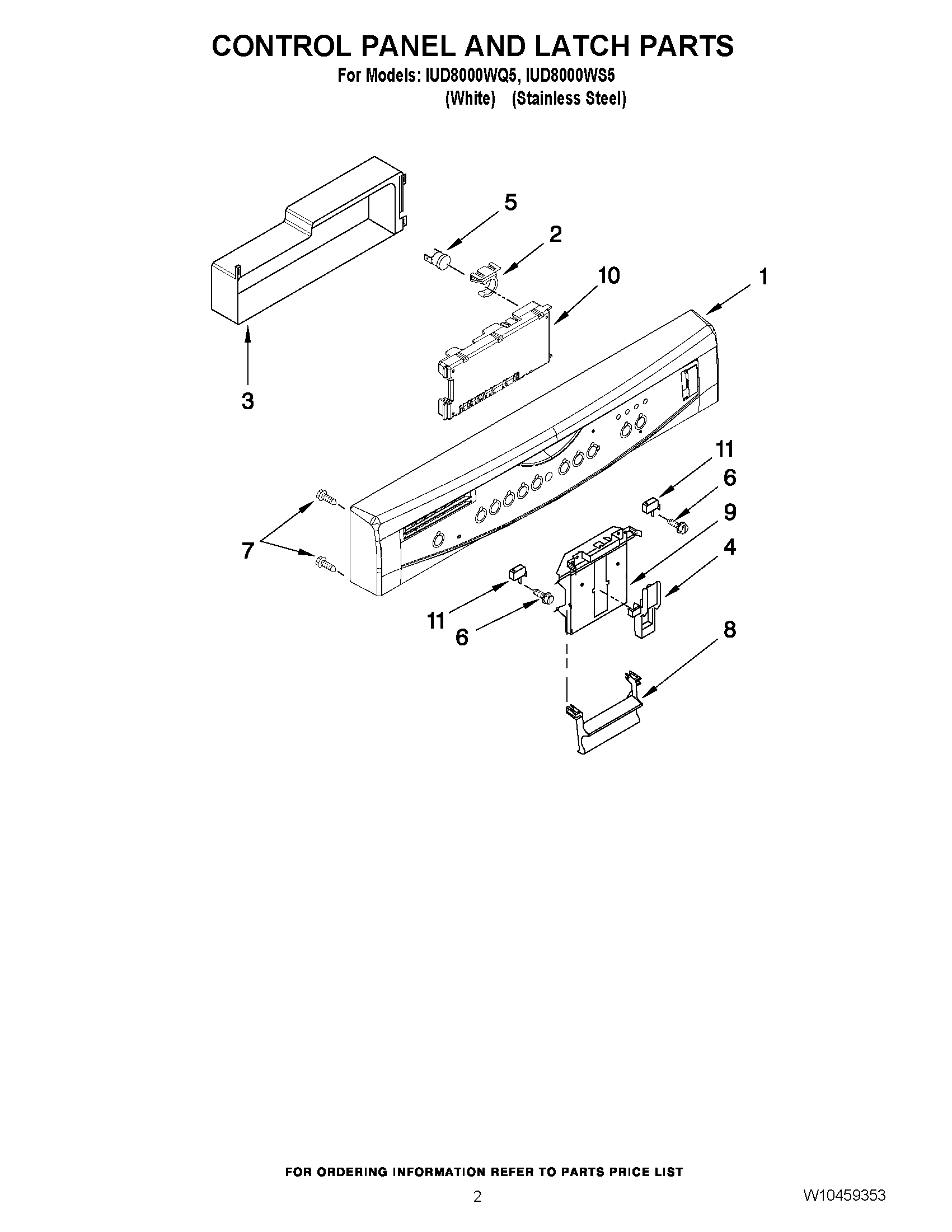

IUD8000WS5 02 – CONTROL PANEL AND LATCH PARTS

IUD8000WS5 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

IUD8000WS5 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1WPW10254995 Whirlpool Dishwasher Control Panel
2Clip, BI-Metal
3Cover Control Shield Assembly
4WP8524471 Whirlpool Dishwasher Actuator
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WP3400412 Whirlpool Dishwasher Screw
7WPW10348413 Whirlpool Dishwasher Screw
8WP8269323 Whirlpool Dishwasher Handle
98193882 Whirlpool Dishwasher Primary Latch Bolt
10WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
11W10102496 Whirlpool Dishwasher Switch
