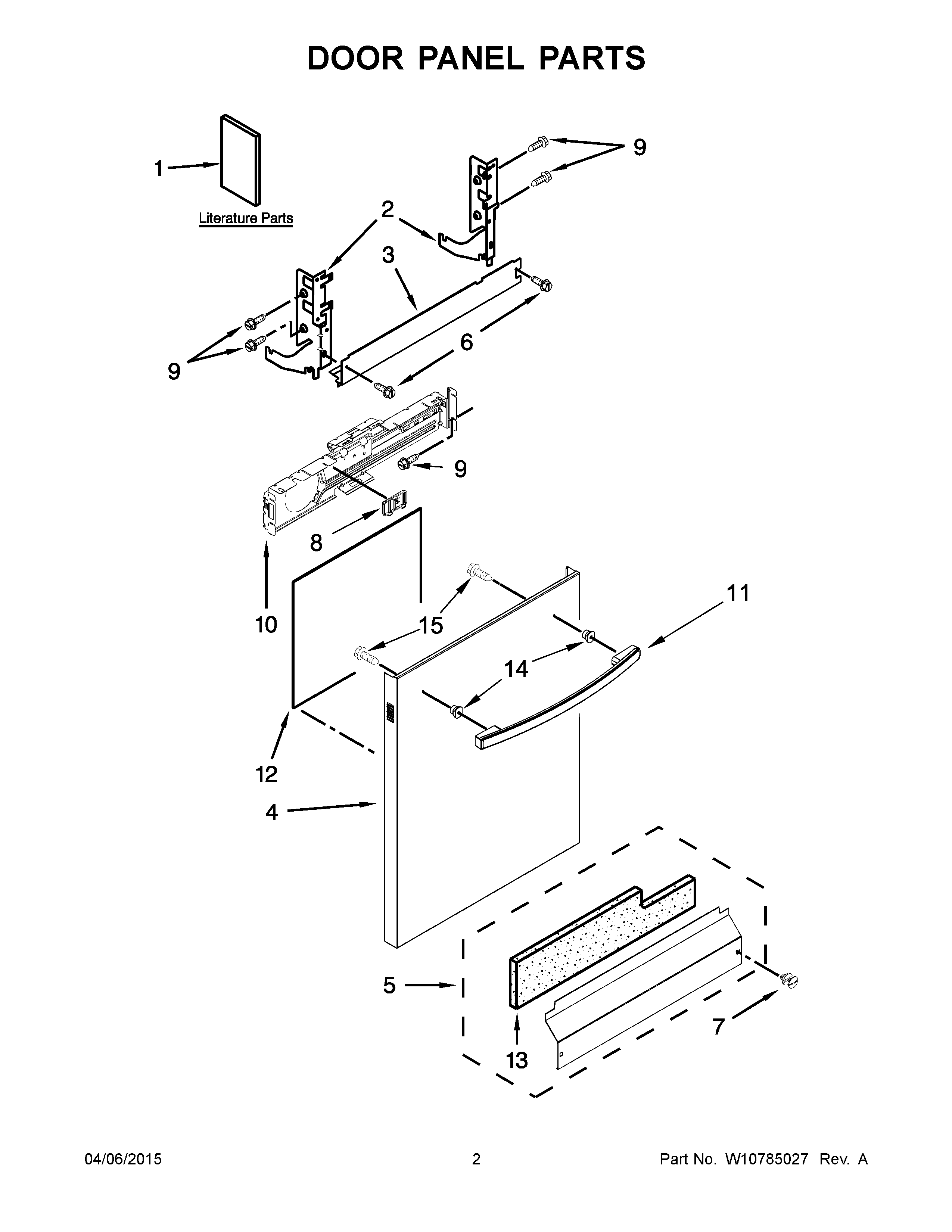

IUD8010DS1 02 – DOOR PANEL PARTS

IUD8010DS1 02 – DOOR PANEL PARTS

Written by

in

IUD8010DS1 02 – DOOR PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1BUSE & CARE GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL, FRONT (INCLUDE ITEMS 14 & 15) (STAINLESS)
5W10827608 Whirlpool Dishwasher Control Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W10463662 Whirlpool Dishwasher Spacer Plate
9WP3400071 Whirlpool Screw
10WPW10350242 Whirlpool Dishwasher Control Bracket
11W11032768 Whirlpool Dishwasher Handle
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
14W11157086 Whirlpool Dishwasher Door Handle Stud
15W10826179 Whirlpool Dishwasher Screw
