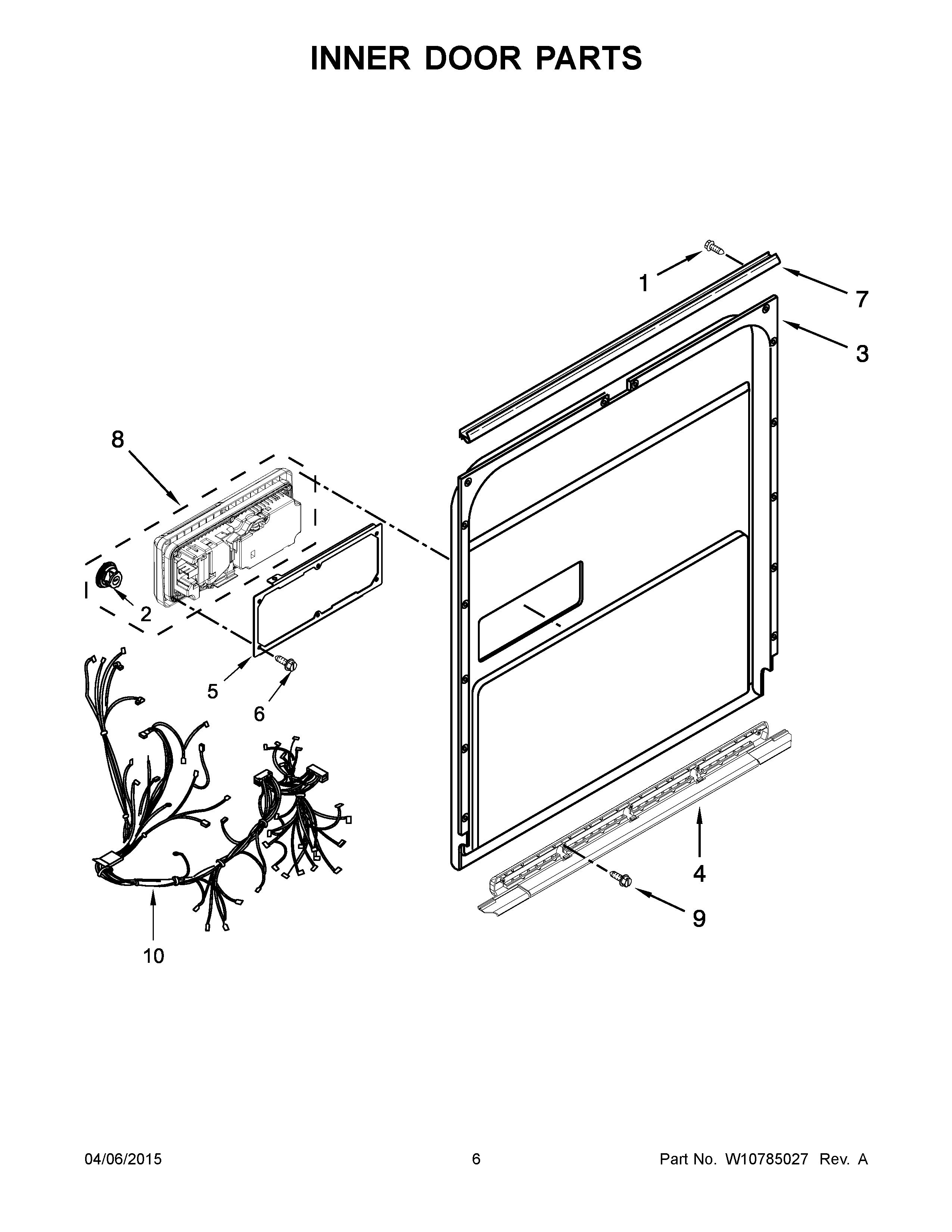

IUD8010DS1 04 – INNER DOOR PARTS

IUD8010DS1 04 – INNER DOOR PARTS

Written by

in

IUD8010DS1 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WPW10524919 Whirlpool Dishwasher Dispenser Cap
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
6WPW10177098 Whirlpool Dishwasher Screw
7WPW10195007 Whirlpool Dishwasher Seal
8DISPENSER (DISHWASHER)
9W11631670 Whirlpool Screw
10W11027902 Whirlpool Dishwasher Wire Harness
