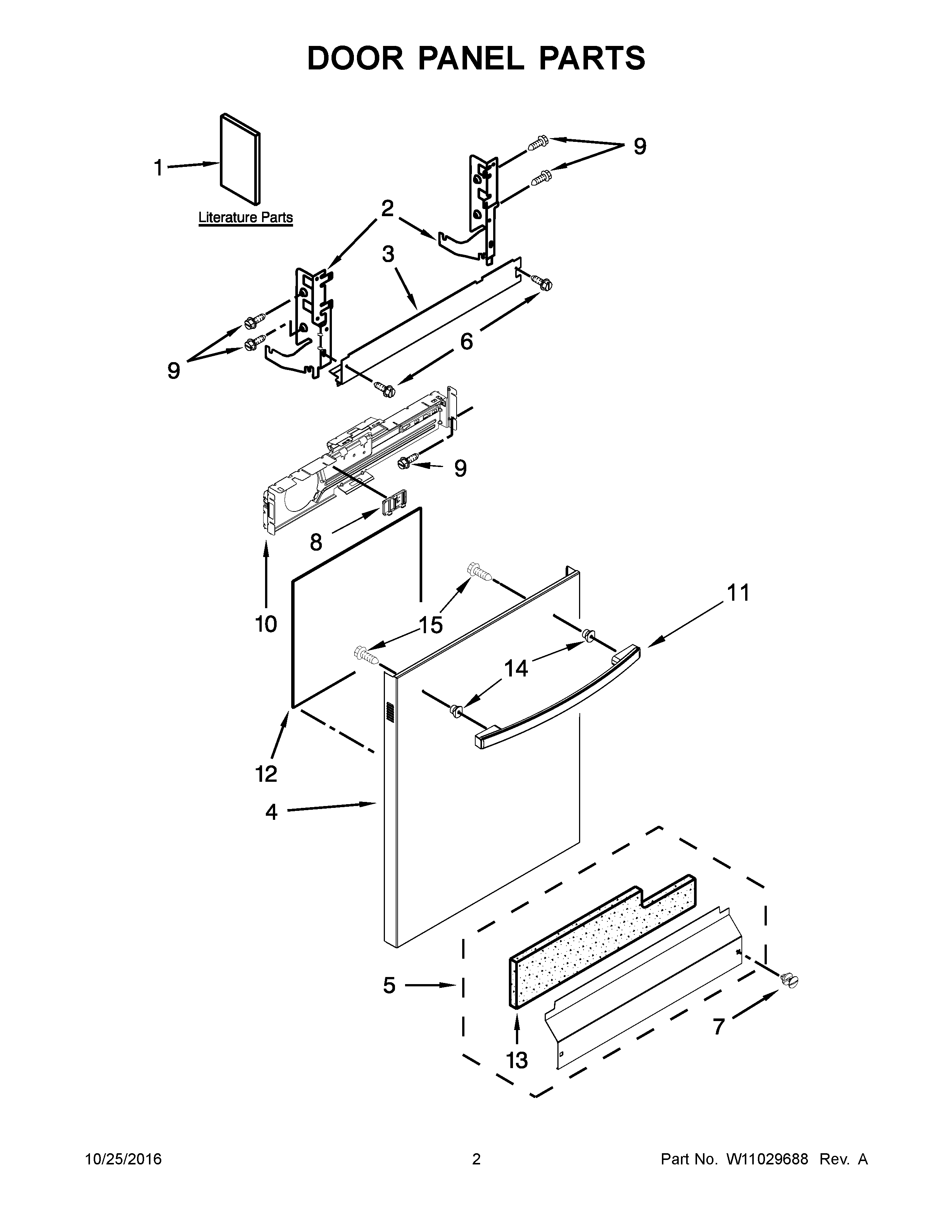

IUD8010DS3 02 – DOOR PANEL PARTS

Products

Position	Product
1C	TECH SHEET, ENGLISH
1	INSTALLATION INSTRUCTIONS
1D	TECH SHEET, FRENCH
1A	ENERGY GUIDE
1B	USE & CARE GUIDE
2A	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	PANEL, FRONT (INCLUDE ITEMS 14 & 15) (STAINLESS)
5	W10827608 Whirlpool Dishwasher Control Panel
6	WP489069 Whirlpool Compactor Screw
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	W10463662 Whirlpool Dishwasher Spacer Plate
9	WP3400071 Whirlpool Screw
10	WPW10350242 Whirlpool Dishwasher Control Bracket
11	W11032768 Whirlpool Dishwasher Handle
12	WPW10073520 Whirlpool Dishwasher Insulation Pad
13	SHIELD
14	W11157086 Whirlpool Dishwasher Door Handle Stud
15	W10826179 Whirlpool Dishwasher Screw
