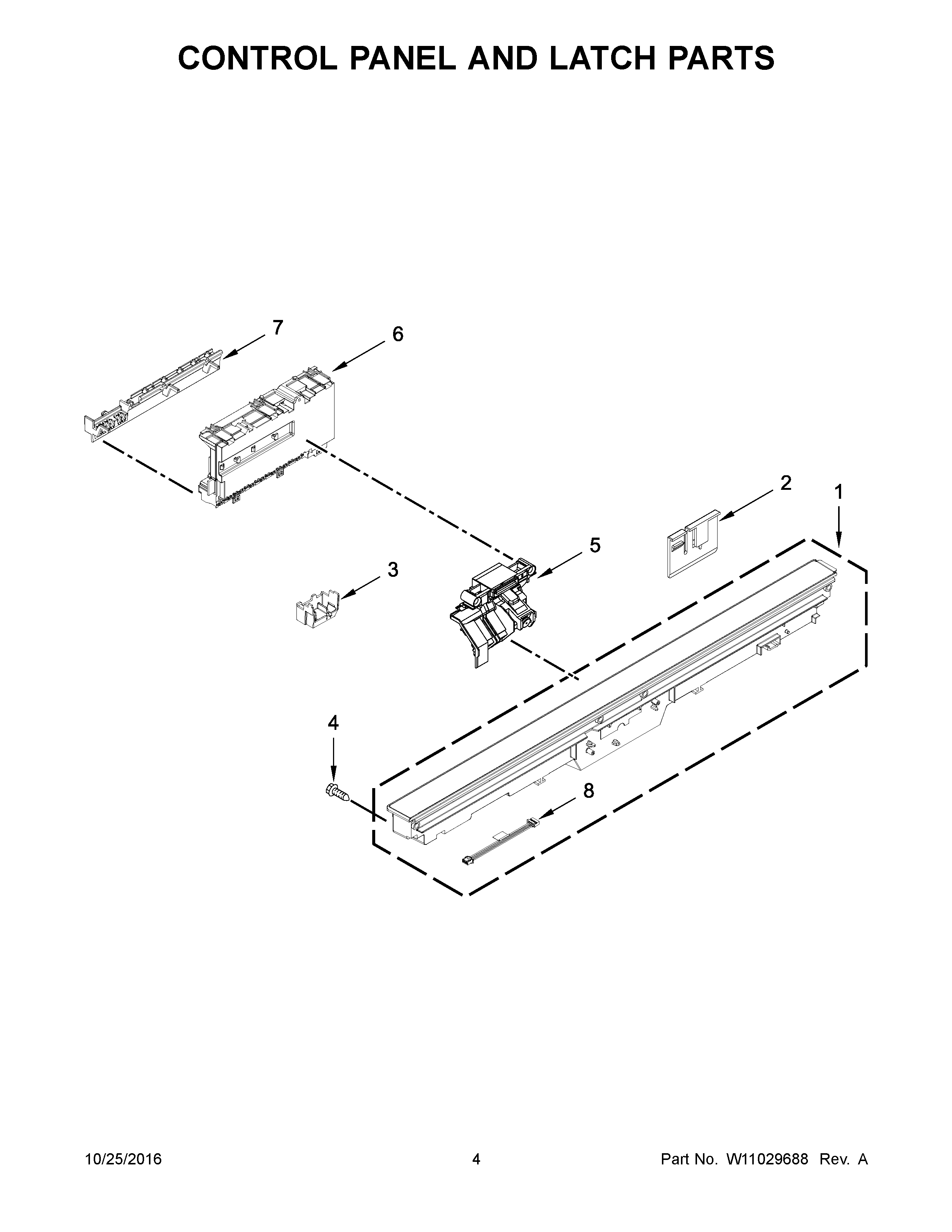

IUD8010DS3 03 – CONTROL PANEL AND LATCH PARTS

IUD8010DS3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

IUD8010DS3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10671831 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10909701-includeCORE Whirlpool W10909701 Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10528492 Whirlpool Dishwasher Wire
