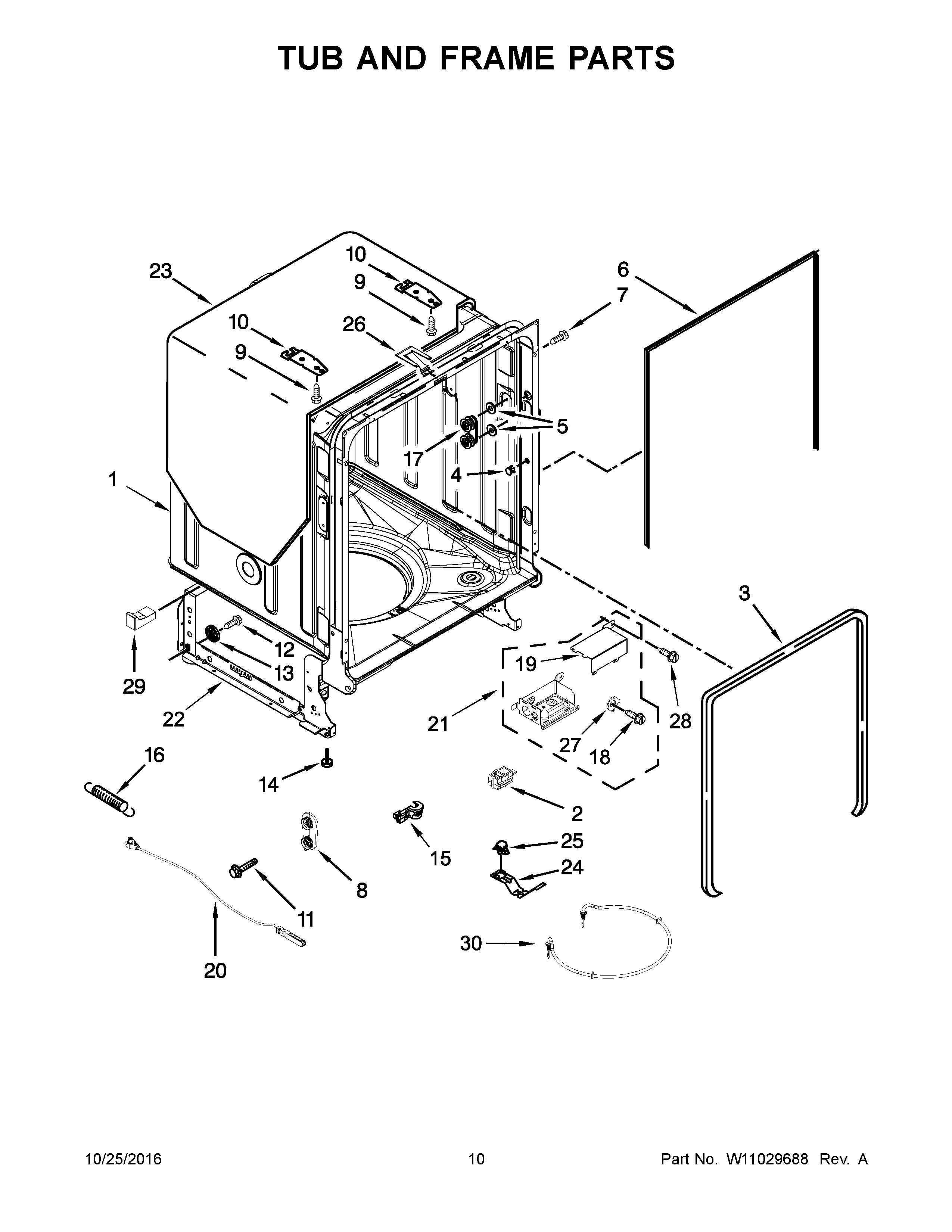

IUD8010DS3 06 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10681507 Whirlpool Dishwasher Tub
2	W10292870 Whirlpool Dishwasher Housing
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP9743002 Whirlpool Dishwasher Gasket
6	SEAL
7	WPW10309090 Whirlpool Dishwasher Screw
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	WPW10348411 Whirlpool Roller Wheel Screw
13	WPW10190778 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	STRAIN RELIEF
16	SPRING
17	WPW10078083 Whirlpool Dishwasher Dishrack Wheel
18	WP3400014 Whirlpool Dishwasher Screw
19	W10847918 Whirlpool Dishwasher Cover
20	8194001 Whirlpool Dishwasher Door Balance Link Kit
21	W11167239 Whirlpool Dishwasher Cover Assembly
22	WPW10681564 Whirlpool Dishwasher Support
23	W11086533 Whirlpool Dishwasher Shield
24	W10300703 Whirlpool Dishwasher Bracket Stat
25	WPW10195091 Whirlpool Thermostat
26	WPW10544004 Whirlpool Dishwasher Strike
27	WP3378128 Whirlpool Dishwasher Washer
28	WP489069 Whirlpool Compactor Screw
29	W10195630 Whirlpool Dishwasher Spacer
29A	W10195631 Whirlpool Dishwasher Tank Spacer
30	W10703867 Whirlpool Dishwasher Heating Element
