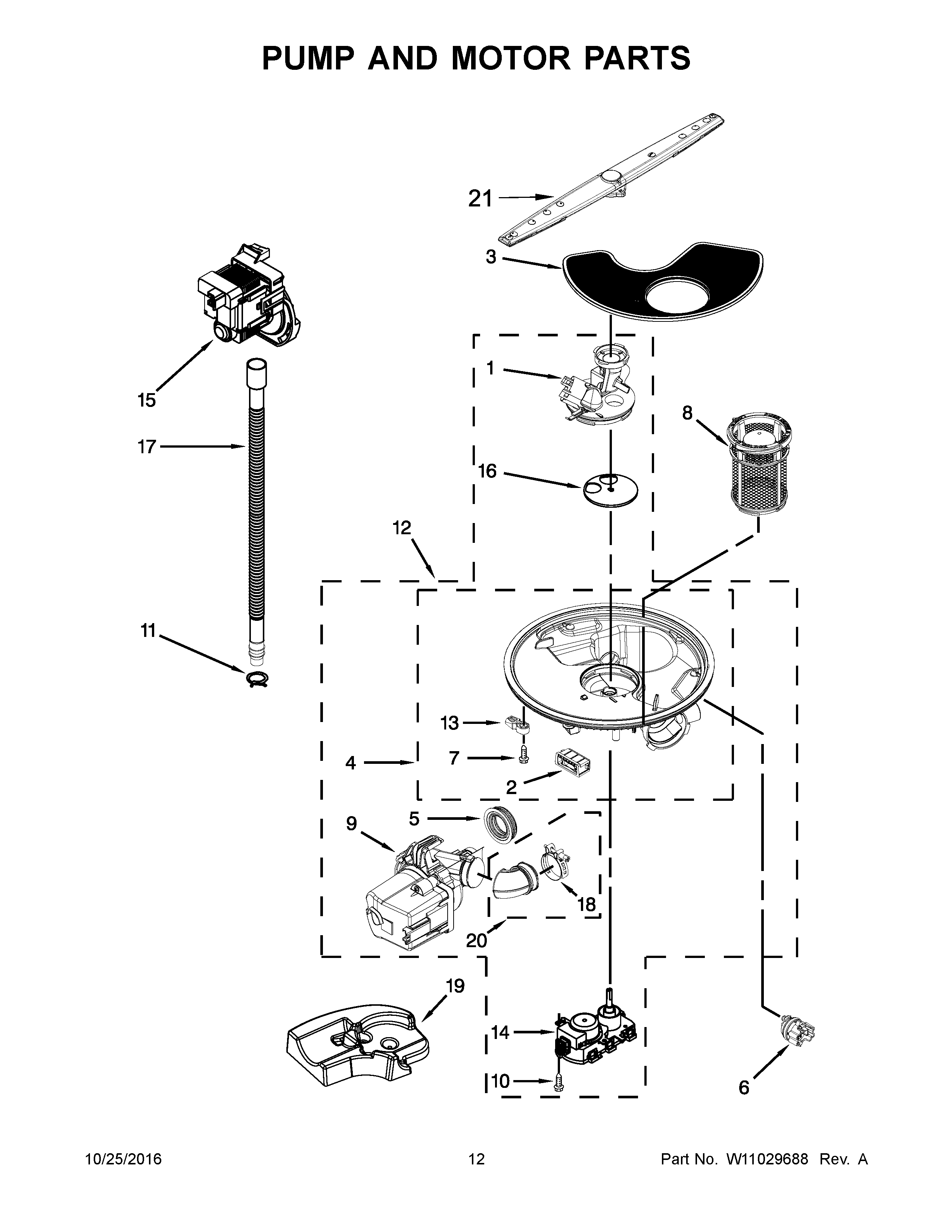

IUD8010DS3 07 – PUMP AND MOTOR PARTS

IUD8010DS3 07 – PUMP AND MOTOR PARTS

Written by

in

IUD8010DS3 07 – PUMP AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2W11243394 Whirlpool Dishwasher Support
3WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4WPW10455268 Whirlpool Sump
5WPW10538166 Whirlpool Grommet Pump
6W11084121 Whirlpool Sensor Turbidity
7WPW10348407 Whirlpool Dishwasher Screw
8W10872845 Whirlpool Dishwasher Filter Cup Trap
9W11032770 Whirlpool Dishwasher Circulation Pump & Motor
10WP9741232 Whirlpool Dishwasher Screw
11WP8269146 Whirlpool Dishwasher Clamp
12WPW10605057 Whirlpool Dishwasher Pump and Motor Assembly
13WPW10372113 Whirlpool Dishwasher Sump Tab
14W10537869 Whirlpool Dishwasher Motor
15WPW10348269 Whirlpool Washer Drain Pump
16WPW10476221 Whirlpool Dishwasher Diffuser
178269144A Whirlpool Dishwasher Drain Hose
18W10789434 Whirlpool Dishwasher Hose Clamp
19W10350335 Whirlpool Dishwasher Damper
20W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
21ARM-SPRAY
