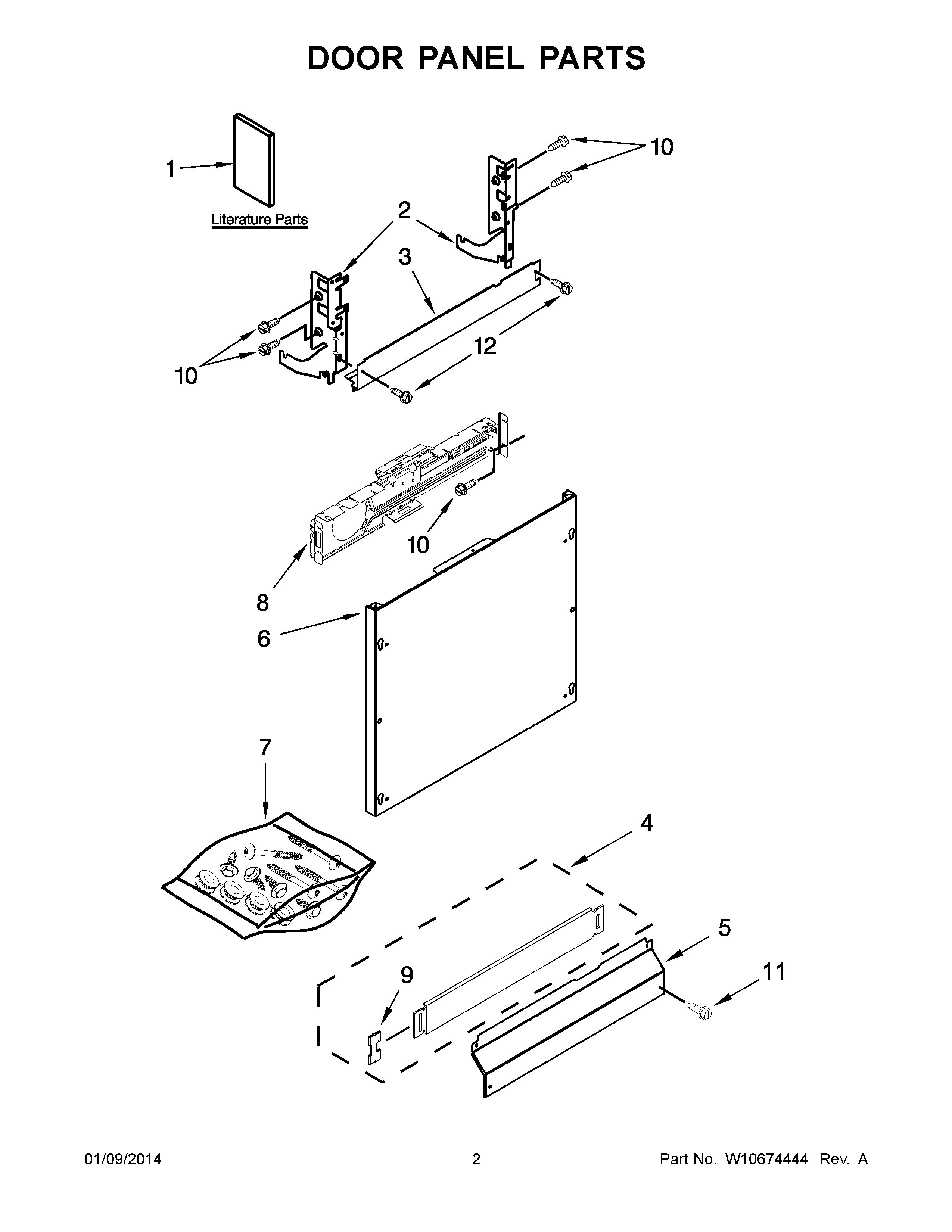

IUD8500BX1 02 – DOOR PANEL PARTS

IUD8500BX1 02 – DOOR PANEL PARTS

Written by

in

IUD8500BX1 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1ENERGY GUIDE
1USE & CARE GUIDE
1TEMPLATE, 6" CUSTOM PANEL
1TECH SHEET, FRENCH
1TECH SHEET, ENGLISH
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10909064 Whirlpool Dishwasher Black Access Panel
6W11113792 Whirlpool Dishwasher Panel
7WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
8W11116870 Whirlpool Dishwasher Control Bracket
9WP8269016 Whirlpool Clip Assembly
10WP3400071 Whirlpool Screw
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
