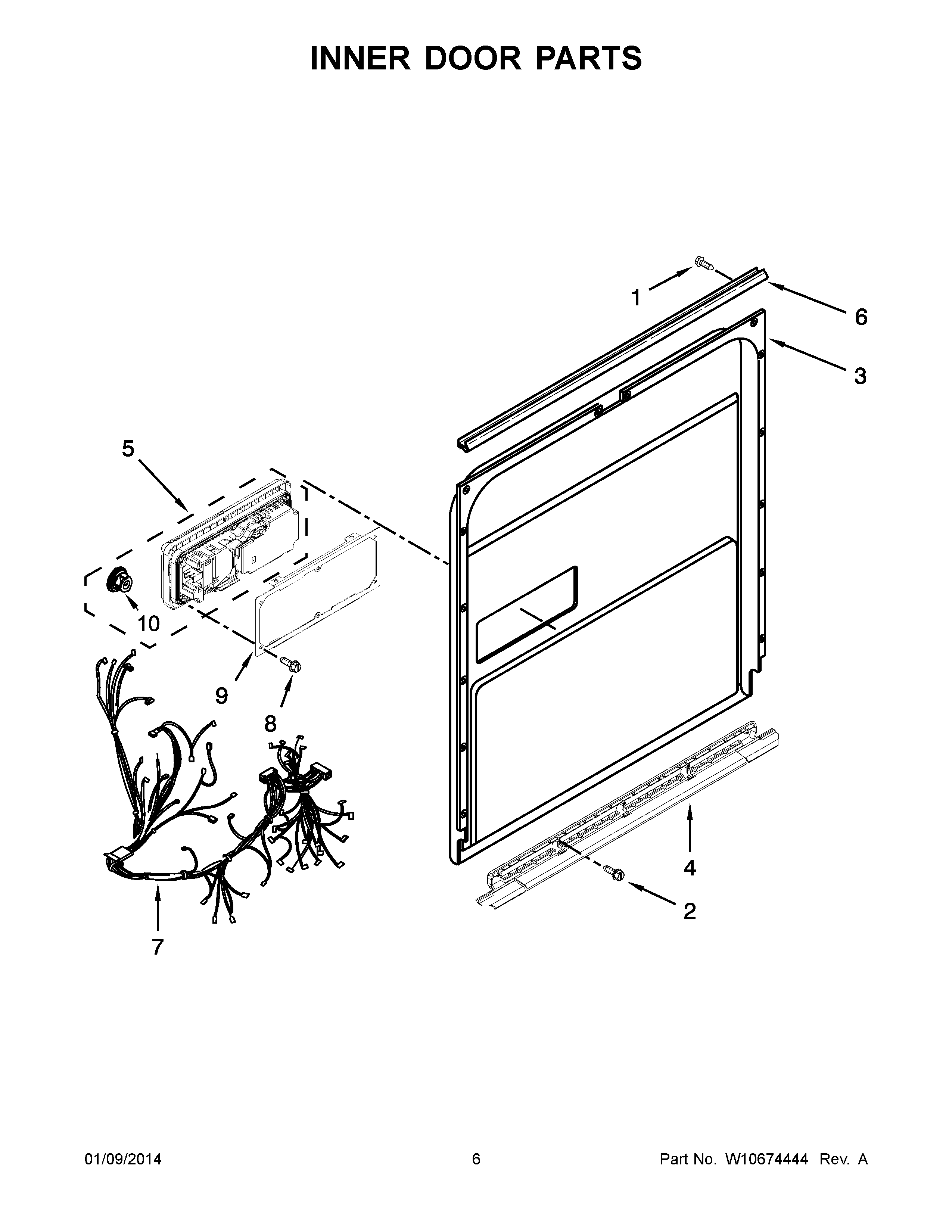

IUD8500BX1 04 – INNER DOOR PARTS

IUD8500BX1 04 – INNER DOOR PARTS

Written by

in

IUD8500BX1 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5DISPENSER (DISHWASHER)
6WPW10195007 Whirlpool Dishwasher Seal
7W10911101 Whirlpool Dishwasher Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10WPW10524911 Whirlpool Dishwasher Cap
