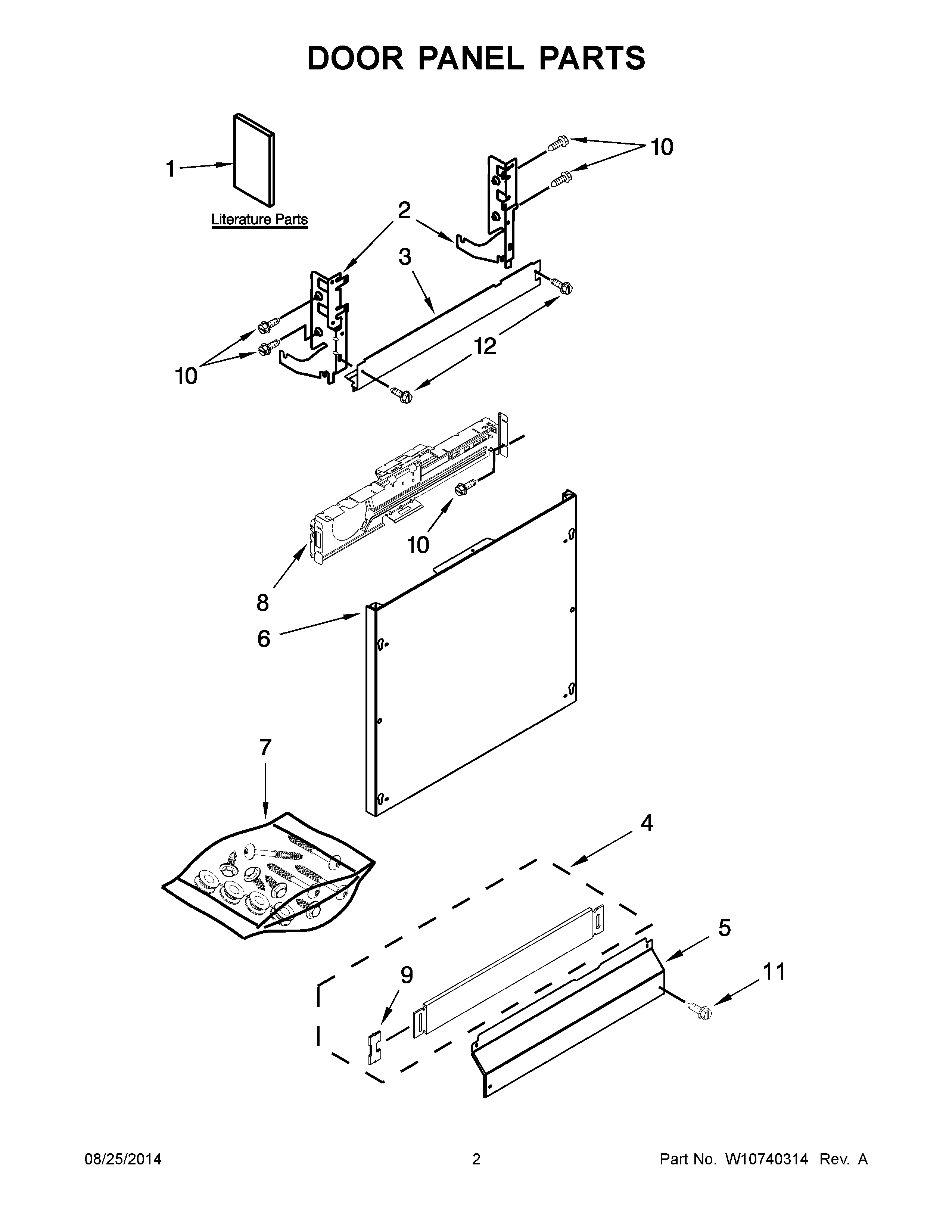

IUD8555DX0 02 – DOOR PANEL PARTS

IUD8555DX0 02 – DOOR PANEL PARTS

Written by

in

IUD8555DX0 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1AENERGY GUIDE
1BUSE & CARE GUIDE
1CTEMPLATE, 6" CUSTOM PANEL
1ETECH SHEET, FRENCH
1DTECH SHEET, ENGLISH
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10909064 Whirlpool Dishwasher Black Access Panel
6W11113792 Whirlpool Dishwasher Panel
7WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
8W11116870 Whirlpool Dishwasher Control Bracket
9WP8269016 Whirlpool Clip Assembly
10WP3400071 Whirlpool Screw
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
