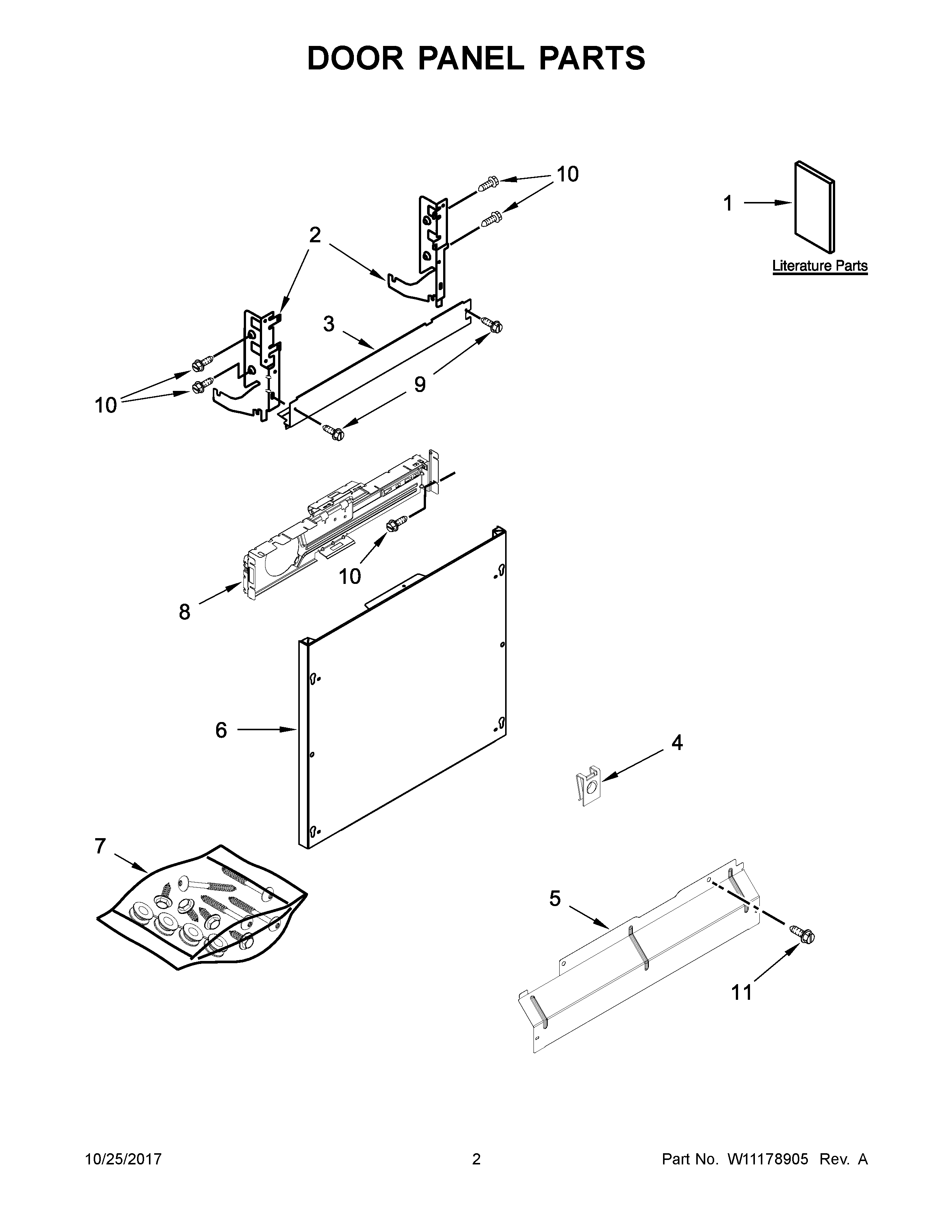

IUD8555DX4 02 – DOOR PANEL PARTS

IUD8555DX4 02 – DOOR PANEL PARTS

Written by

in

IUD8555DX4 02 – DOOR PANEL PARTS

Products

PositionProduct
1CUSE & CARE GUIDE
1BENERGY GUIDE
1INSTRUCTIONS, INSTALLATION (CUSTOM PANEL)
1DTEMPLATE, 6" CUSTOM PANEL
1AINSTALLATION INSTRUCTIONS
1FTECH SHEET, FRENCH
1ETECH SHEET, ENGLISH
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10910629 Whirlpool Dishwasher Nut
5W10909064 Whirlpool Dishwasher Black Access Panel
6W11113792 Whirlpool Dishwasher Panel
7WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
8W11116870 Whirlpool Dishwasher Control Bracket
9WP489069 Whirlpool Compactor Screw
10WP3400071 Whirlpool Screw
11WP302868 Whirlpool Screw
