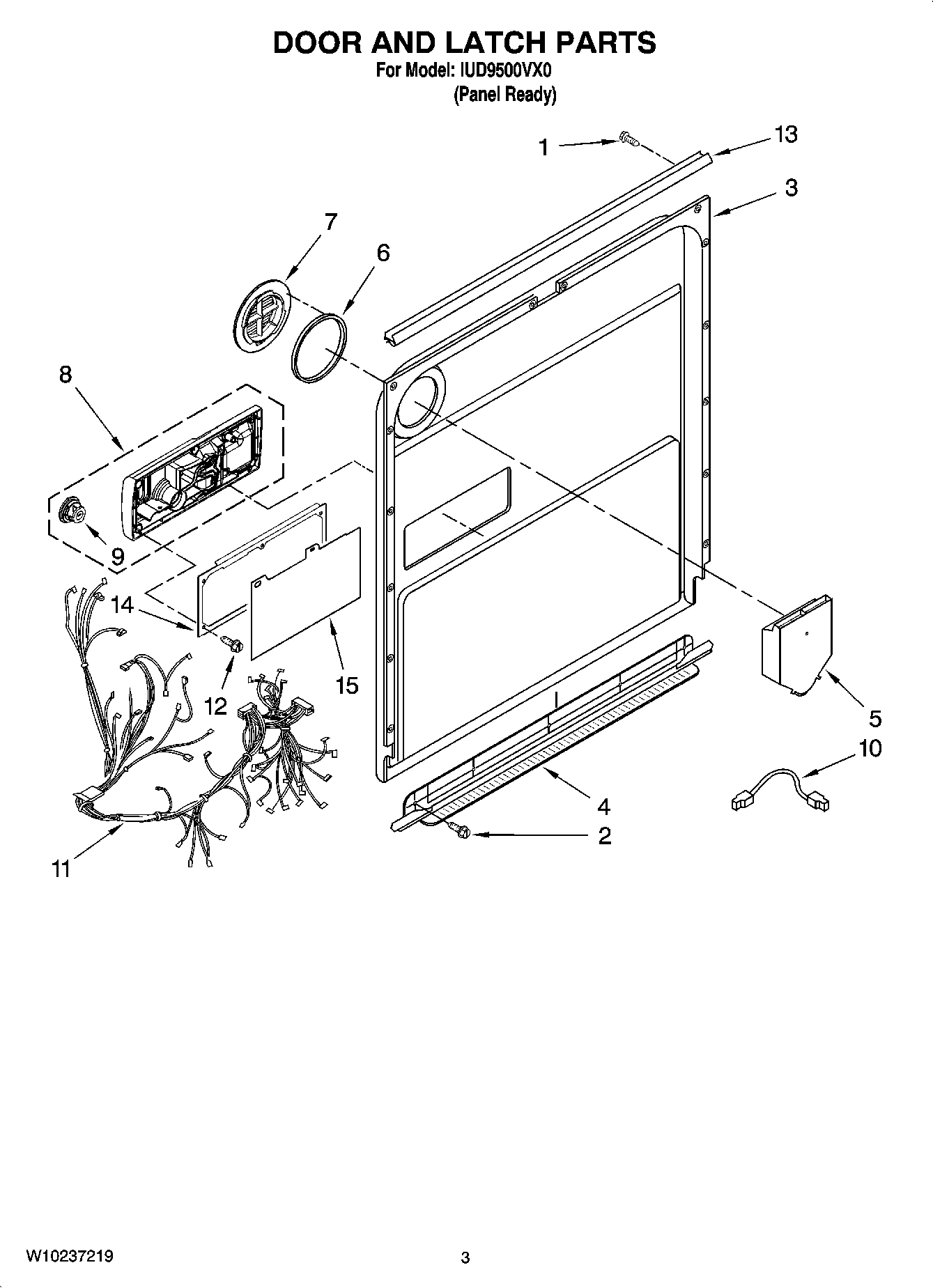

IUD9500VX0 03 – DOOR AND LATCH PARTS

IUD9500VX0 03 – DOOR AND LATCH PARTS

Written by

in

IUD9500VX0 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)
4WP8268937 Whirlpool Dishwasher Air Inlet
5WP8572611 Whirlpool Air Duct Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8WPW10224430 Whirlpool Dishwasher Detergent Dispenser
9WP8564929 Whirlpool Rinse Aid Cap
10Harness, Vent Motor
11Wiring Harness
12WPW10177098 Whirlpool Dishwasher Screw
13WP8535660 Whirlpool Dishwasher Seal
14WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
15WP8531865 Whirlpool Dishwasher Door Shield
