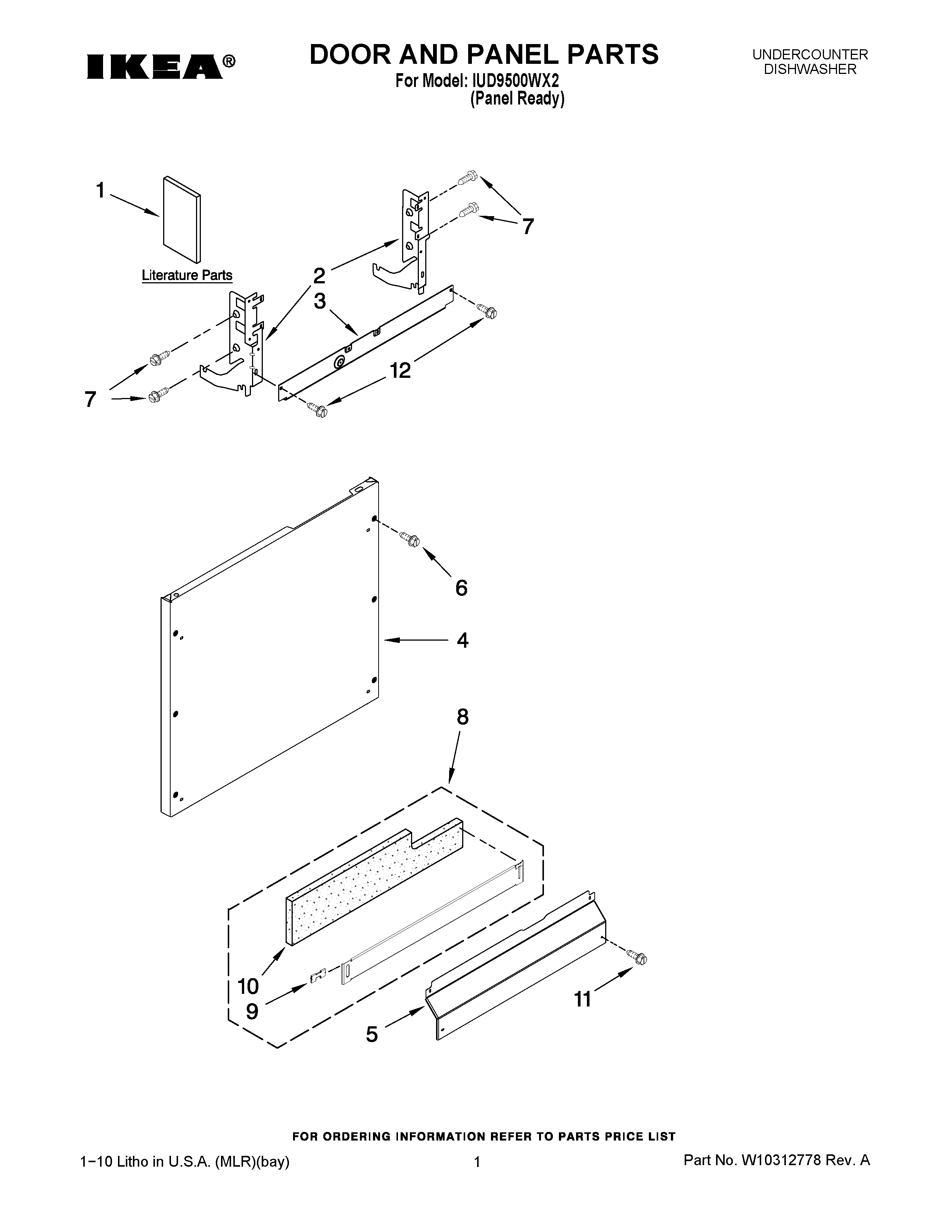

IUD9500WX2 01 – DOOR AND PANEL PARTS

IUD9500WX2 01 – DOOR AND PANEL PARTS

Written by

in

IUD9500WX2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1Tech Sheet
1INSERT-INSTALL
1GUIDE, USE & CARE (ENLISH/FRENCH)
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
5CABINET (NOT A SERVICEABLE PART)
6WPW10348409 Whirlpool Screw
6W10909064 Whirlpool Dishwasher Black Access Panel
7WP3400071 Whirlpool Screw
9WP8269016 Whirlpool Clip Assembly
10SHIELD
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
