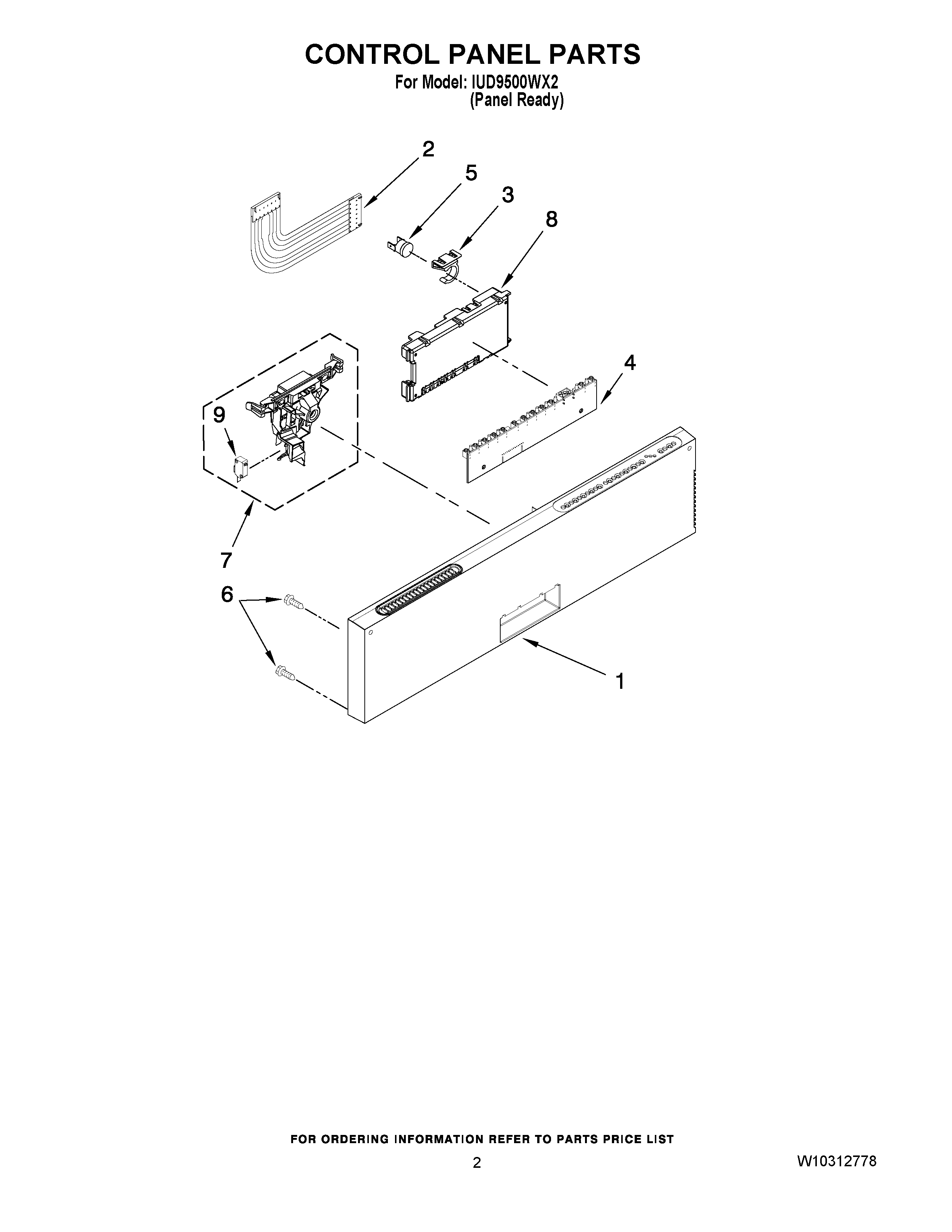

IUD9500WX2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
2	Cable, Ribbon
3	Clip, BI-Metal
4	USER INTERFACE
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WPW10348409 Whirlpool Screw
7	WPW10404412 Whirlpool Door Latch
8	WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
9	WPW10134019 Whirlpool Dishwasher Switch
