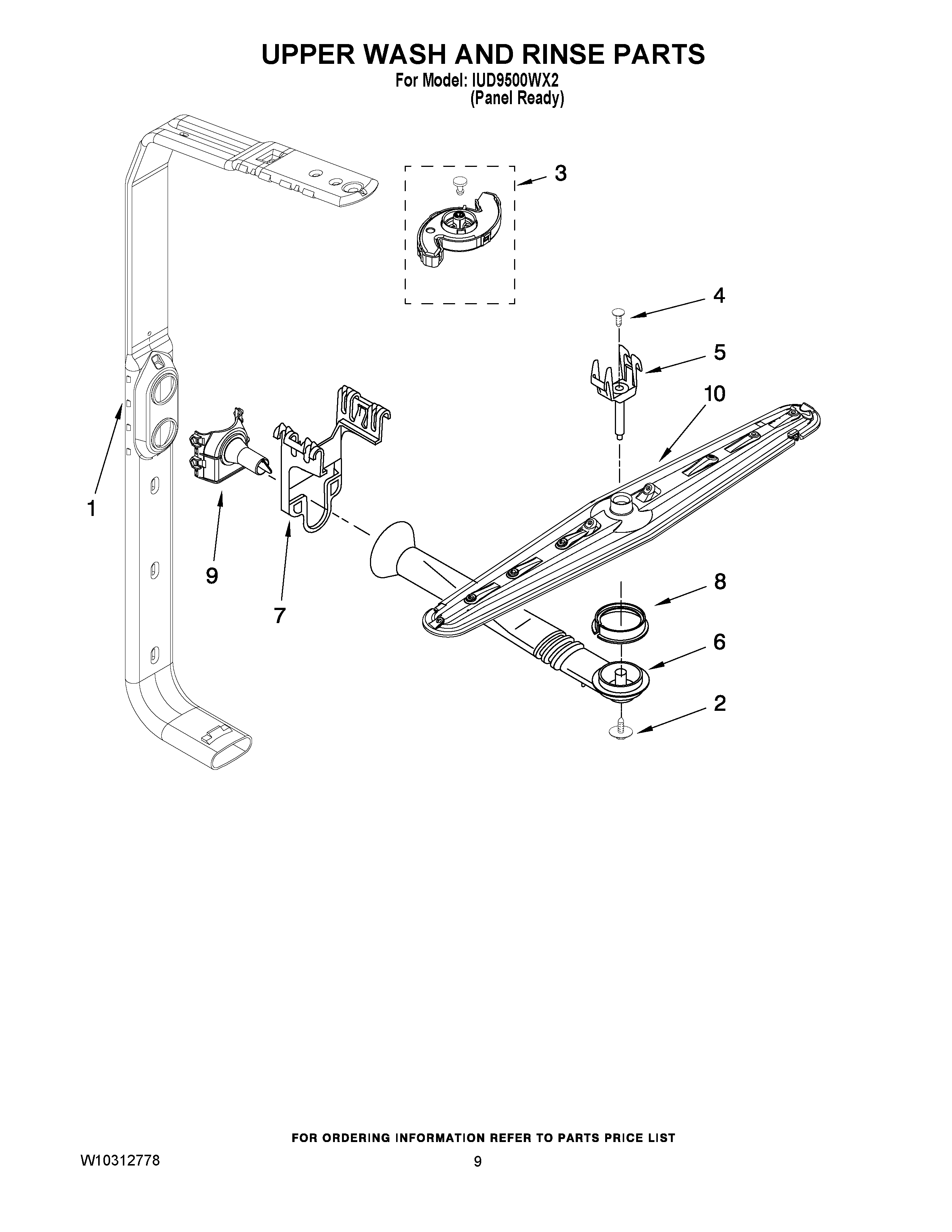

IUD9500WX2 07 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	Feed Tube Assembly (Also Includes Item 3)
2	WPW10349488 Whirlpool Screw
3	8193983 Whirlpool Spinner Kit
4	WP3400919 Whirlpool Dishwasher Screw Cover
5	WP8268321 Whirlpool Dishwasher Mount
6	WP8268326 Whirlpool Dishwasher Tube
7	Holder, Feed Tube
8	WP8268433 Whirlpool Seal Assembly
9	Nozzle, Feed
10	WP8535083 Whirlpool Dishwasher Spray Arm
