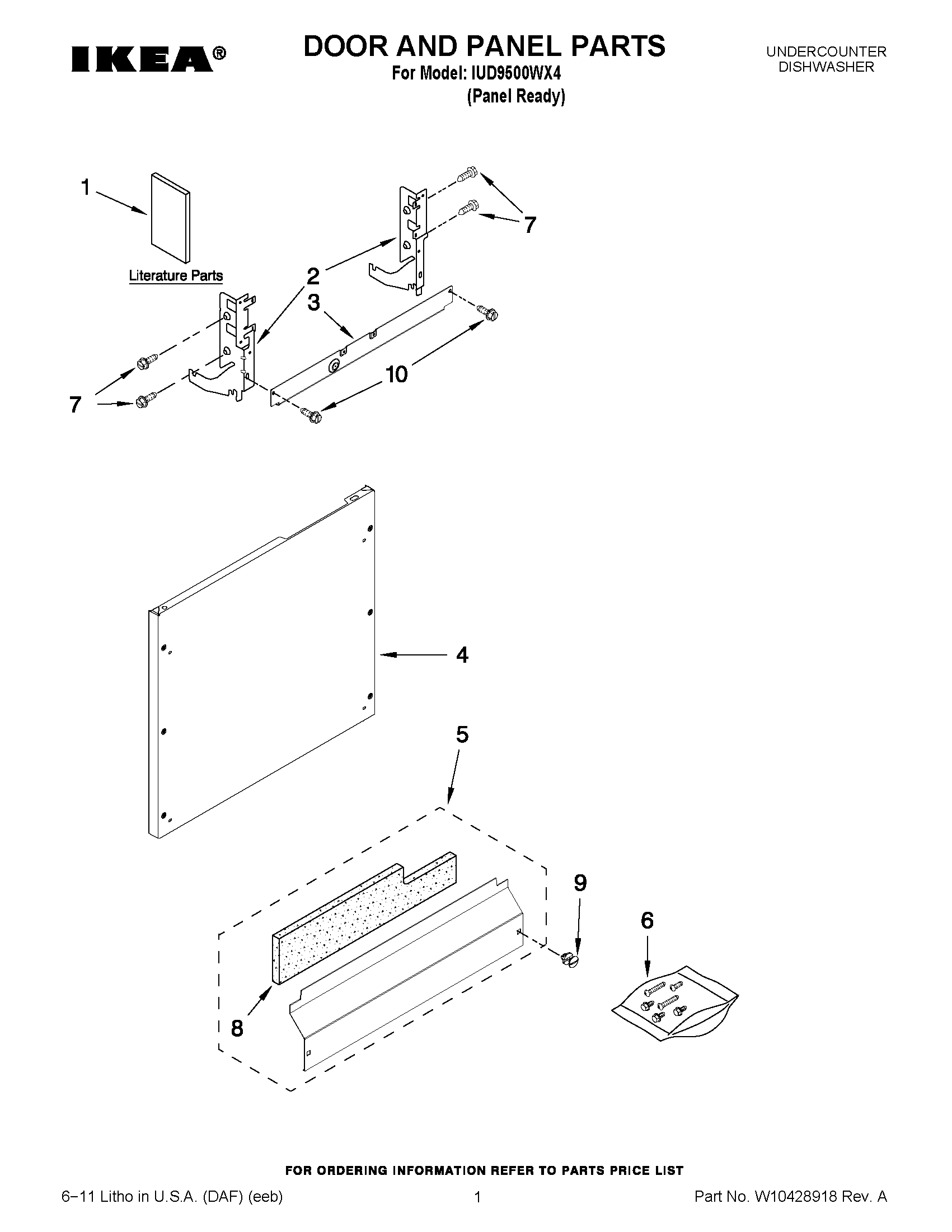

IUD9500WX4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENLISH/FRENCH)
1Tech Sheet
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
5W10827631 Whirlpool Toe Panel
6Screws, Bag Door Assembly
7WP3400071 Whirlpool Screw
8SHIELD
9WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
10WP489069 Whirlpool Compactor Screw
