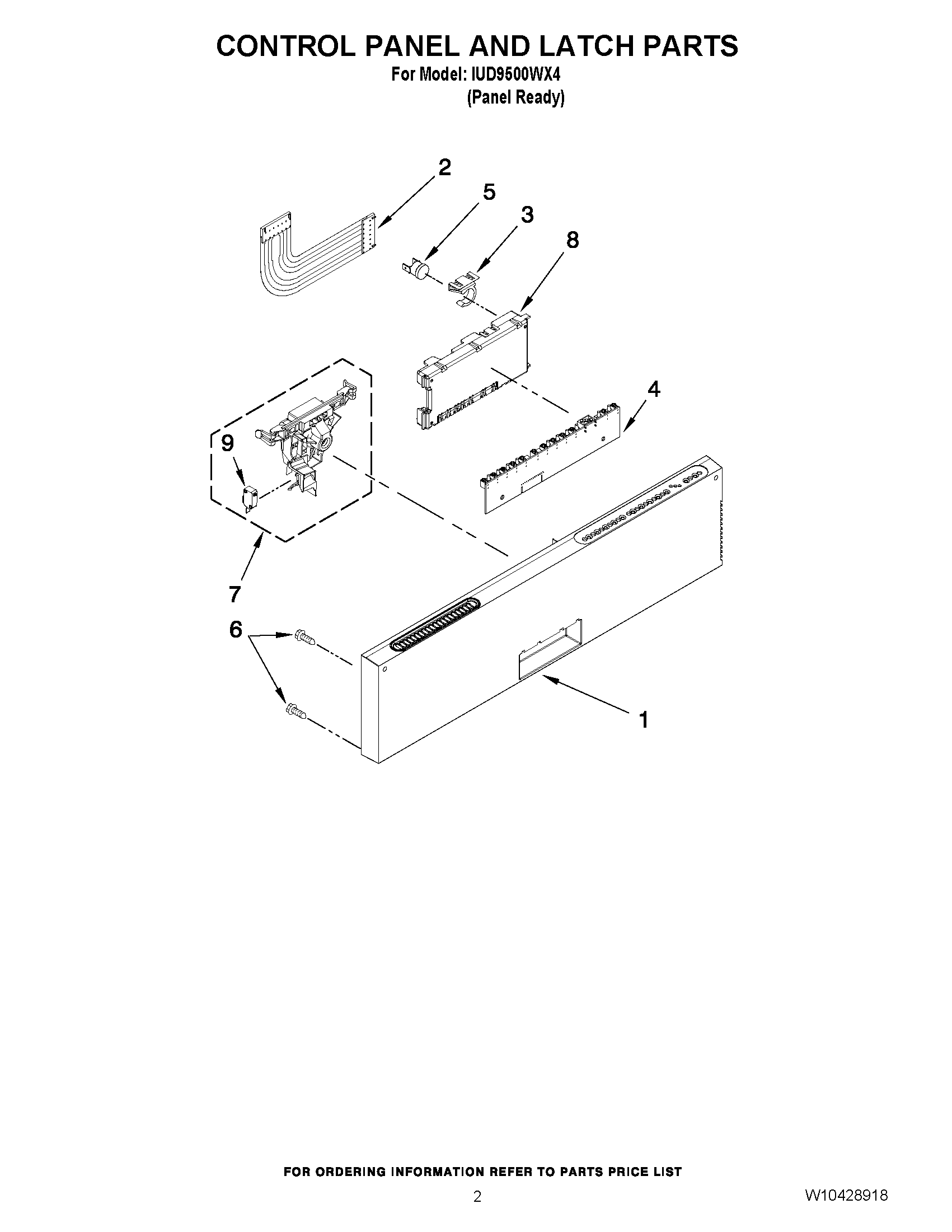

IUD9500WX4 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
2Cable, Ribbon
3Clip, BI-Metal
4USER INTERFACE
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WPW10348409 Whirlpool Screw
7WPW10404412 Whirlpool Door Latch
8WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
9Shield, Switch
