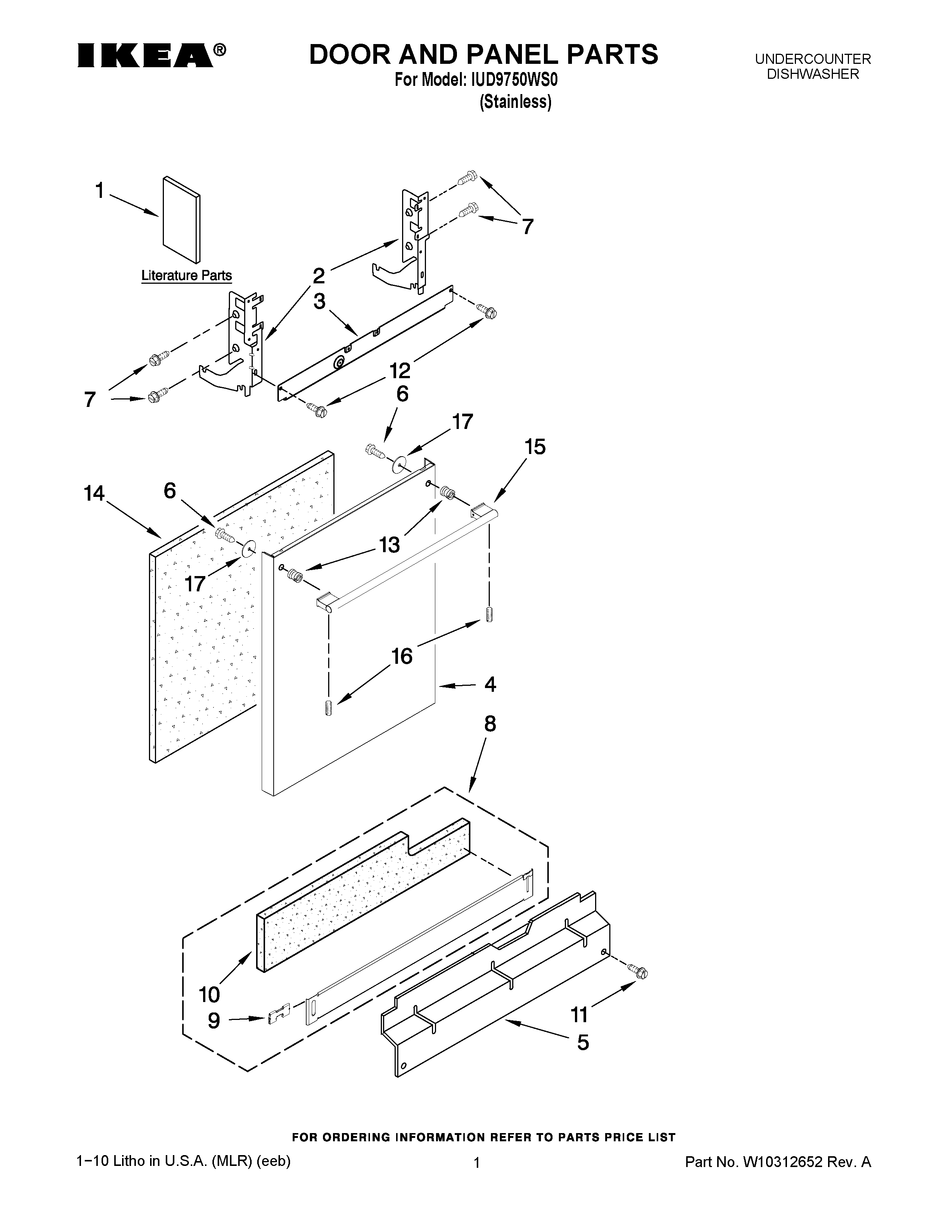

IUD9750WS0 01 – DOOR AND PANEL PARTS

IUD9750WS0 01 – DOOR AND PANEL PARTS

Written by

in

IUD9750WS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (ENLISH/FRENCH)
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
1Tech Sheet
1INSTRUCTIONS, INSTALLATION
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel, Front
5CABINET (NOT A SERVICEABLE PART)
6WPW10348413 Whirlpool Dishwasher Screw
6W10909064 Whirlpool Dishwasher Black Access Panel
7WP3400071 Whirlpool Screw
9WP8269016 Whirlpool Clip Assembly
10SHIELD
11WP302868 Whirlpool Screw
12WP489069 Whirlpool Compactor Screw
13WP8564951 Whirlpool Dishwasher Stud
14WPW10073520 Whirlpool Dishwasher Insulation Pad
15Handle
16WP8534008 Whirlpool Screw
17PLATE-BACKING
