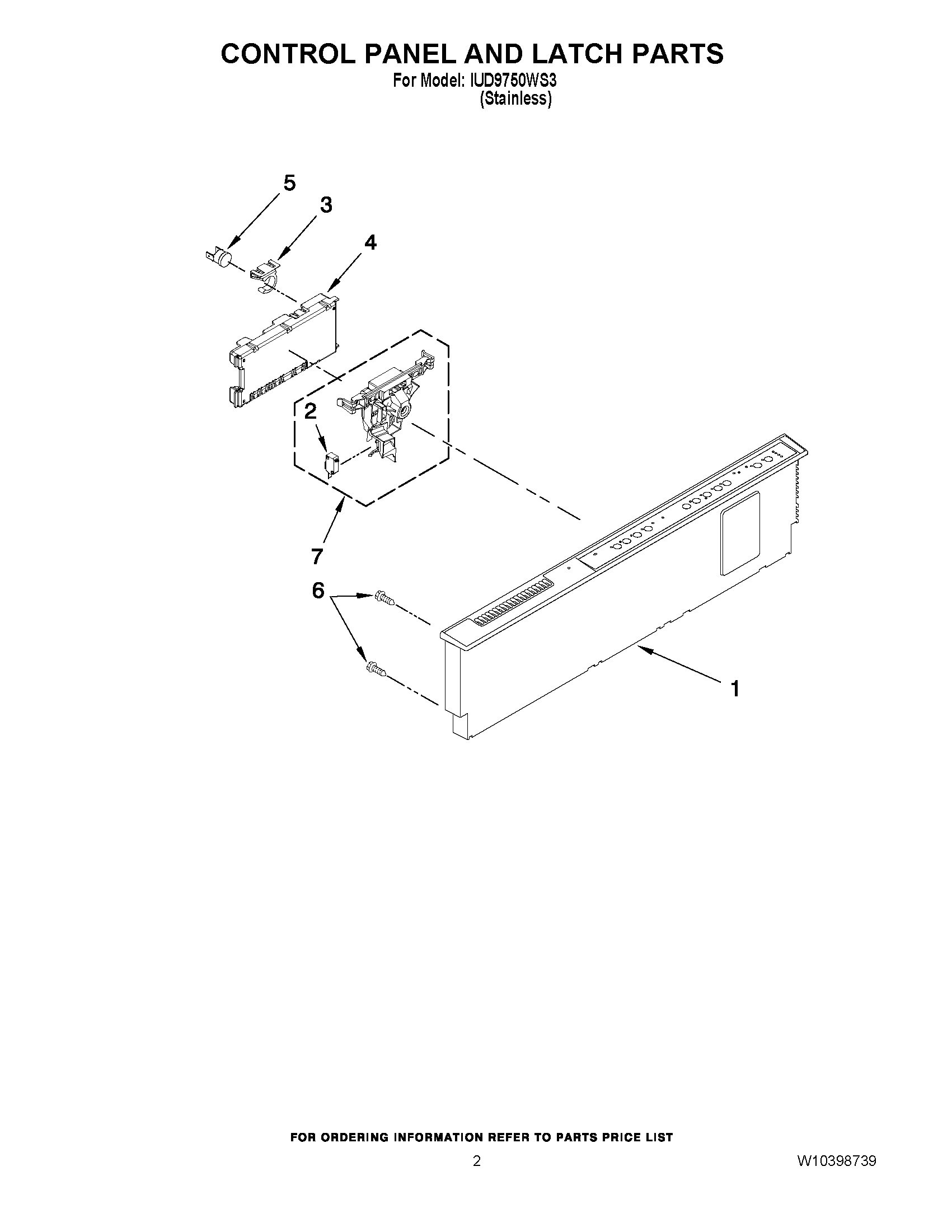

IUD9750WS3 02 – CONTROL PANEL AND LATCH PARTS

IUD9750WS3 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

IUD9750WS3 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT)
2WPW10134019 Whirlpool Dishwasher Switch
3Clip, BI-Metal
4WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WP8533965 Whirlpool Dishwasher Screw
7WPW10404412 Whirlpool Door Latch
