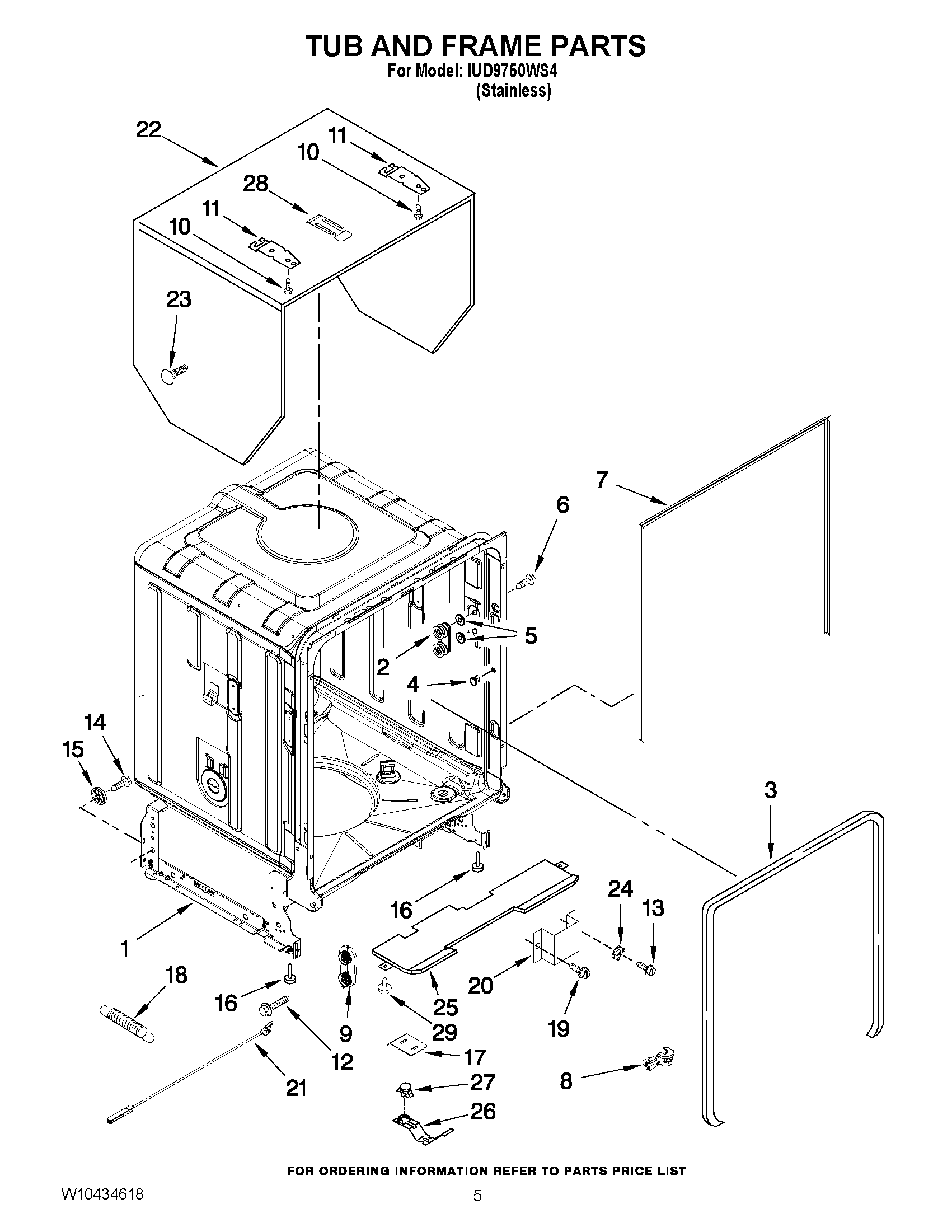

IUD9750WS4 05 – TUB AND FRAME PARTS

IUD9750WS4 05 – TUB AND FRAME PARTS

Written by

in

IUD9750WS4 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2WP8270019 Whirlpool Dishwasher Dishrack Wheel
3W11196317 Whirlpool Dishwasher Door Gasket
4W10795980 Whirlpool Cap
5WP9743002 Whirlpool Dishwasher Gasket
6WPW10309090 Whirlpool Dishwasher Screw
7SEAL
8W11384788 Whirlpool Dishwasher Relief Strainer
9WPW10084086 Whirlpool Dishwasher Mount
10WP308685 Whirlpool Microwave Screw
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12WP3400074 Whirlpool Dishwasher Screw
13WP3400014 Whirlpool Dishwasher Screw
14WPW10348411 Whirlpool Roller Wheel Screw
15WP8268977 Whirlpool Dishwasher Wheel
168193716 Whirlpool Leveling Leg
17W10321574 Whirlpool Dishwasher Shield
18SPRING
19WPW10277003 Whirlpool Screw
20WP8268991 Whirlpool Dishwasher Cover Assembly
218194001 Whirlpool Dishwasher Door Balance Link Kit
22WPW10746770 Whirlpool Insulation Pad
23WP304666 Whirlpool Dishwasher Retainer
24WP3378128 Whirlpool Dishwasher Washer
25W10877094 Whirlpool Shield
26BRACKET, THERMOSTAT
27WP661566 Whirlpool High Limit Thermostat
28STRIKE, LATCH
29WP3400924 Whirlpool Dishwasher Retainer
