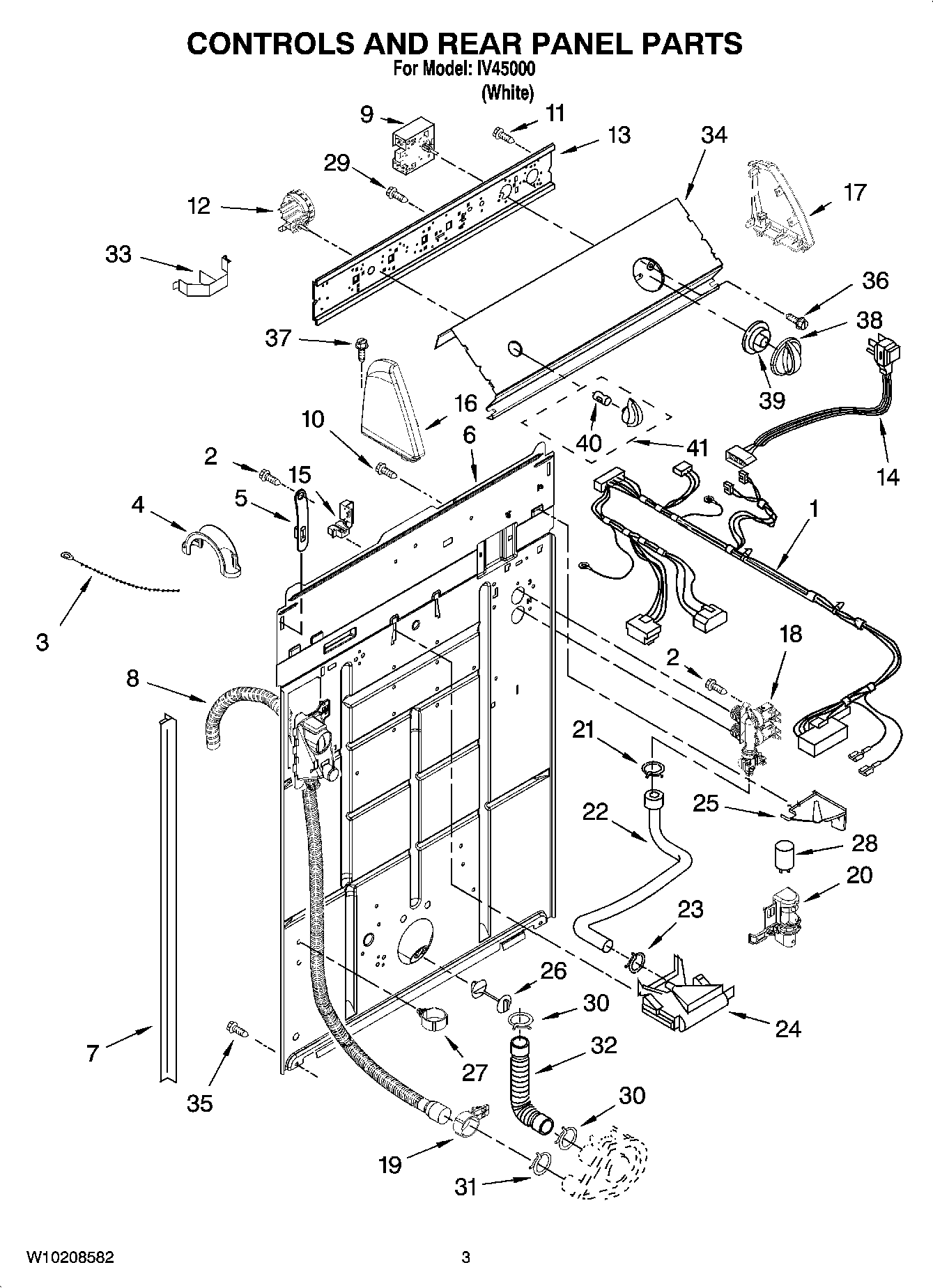

IV45000 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Harness, Wiring (For Detail See Pa
2	WP9740848 Whirlpool Dishwasher Screw
3	WPW10339879 Whirlpool Wire Tie
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10096921 Whirlpool Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339251 Whirlpool Washer Water Level Control Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	W10820038 Whirlpool Endcap
18	WP8578340 Whirlpool Valve
19	8541668 Whirlpool Washer Clamp
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WPL 8539874
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	CAPACITOR
29	3400073 Whirlpool Screw
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Panel, Console
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
37	WP388326 Whirlpool Screw
38	Knob, Timer
39	WP8544947 Whirlpool Dial
40	WP8536939 Whirlpool Spring Clip
41	Knob, Control
