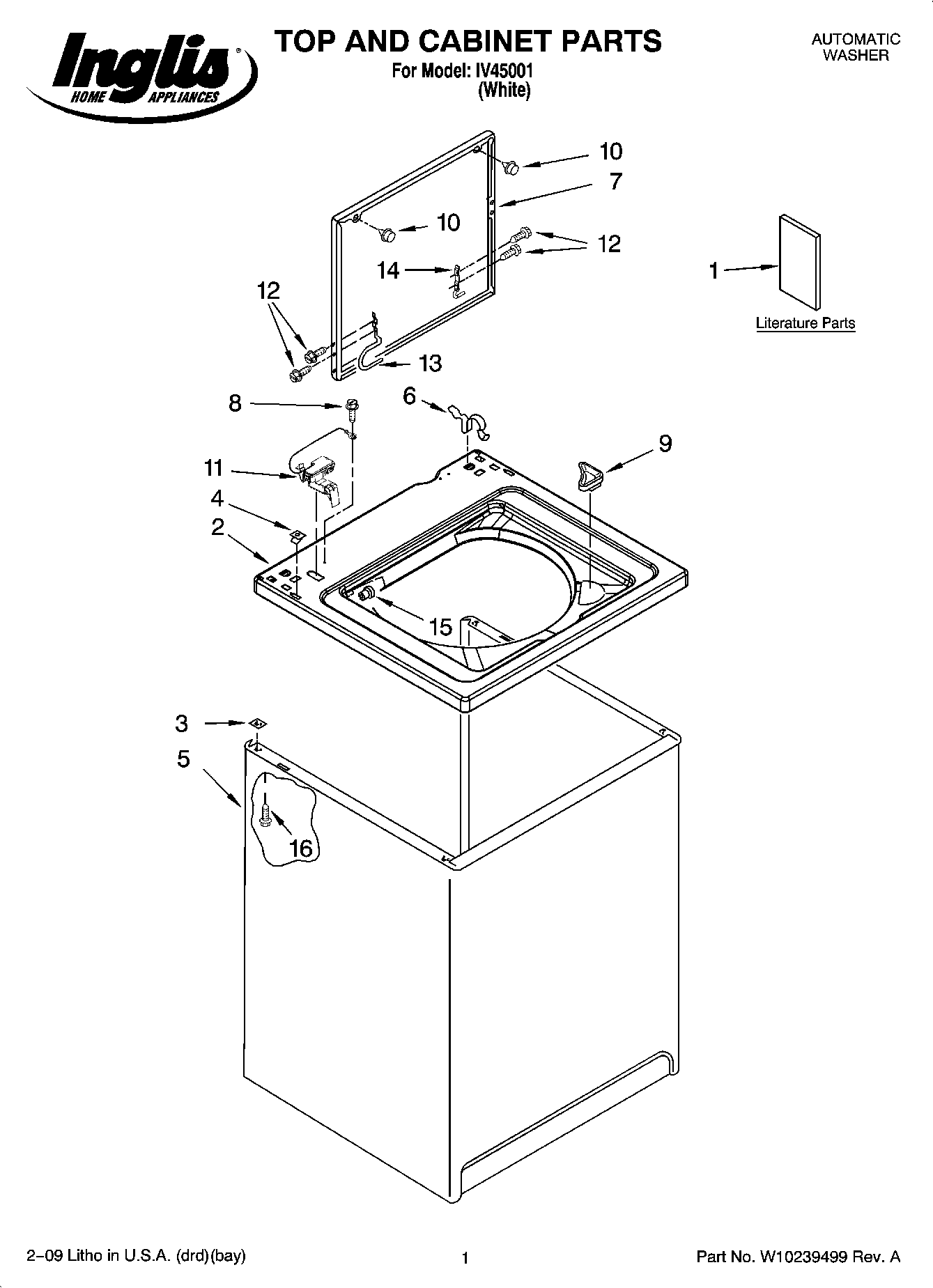

IV45001 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide
1	Feature Sheet
1	Installation Instructions (English/French)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WPW10193857 Whirlpool Lid Assembly
8	WP3351614 Whirlpool Screw
9	WP3362952 Whirlpool Bezel
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	SCREW
13	Hinge, Lid (L.H.)
14	WP91770 Whirlpool Hinge
15	WP21258 Whirlpool Washer Lid Hinge Bearing
16	WP3390631 Whirlpool Screw
