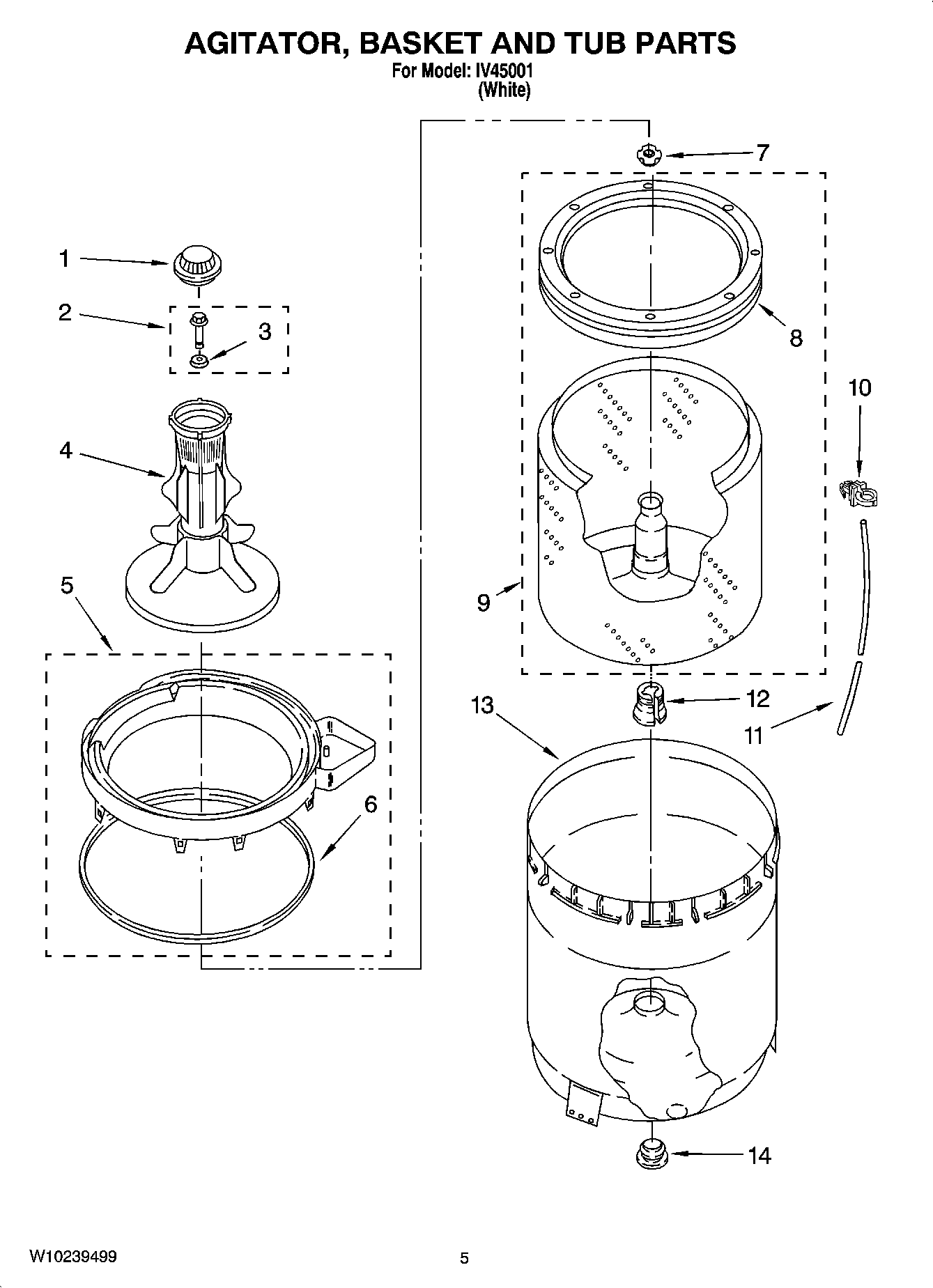

IV45001 03 – AGITATOR, BASKET AND TUB PARTS

IV45001 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

IV45001 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4WP63235 Whirlpool Agitator Assembly
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP21366 Whirlpool Spanner Nut
8WP387240 Whirlpool Balance Ring
9W10389328 Whirlpool Basket
102219077 Whirlpool Refrigerator Clip
11WP353244 Whirlpool Hose
12WP389140 Whirlpool Drive Block or Bell
1363849 Whirlpool Outer Tub Primary Assembly
14W10814296 Whirlpool Washer Center Post Seal Gasket
