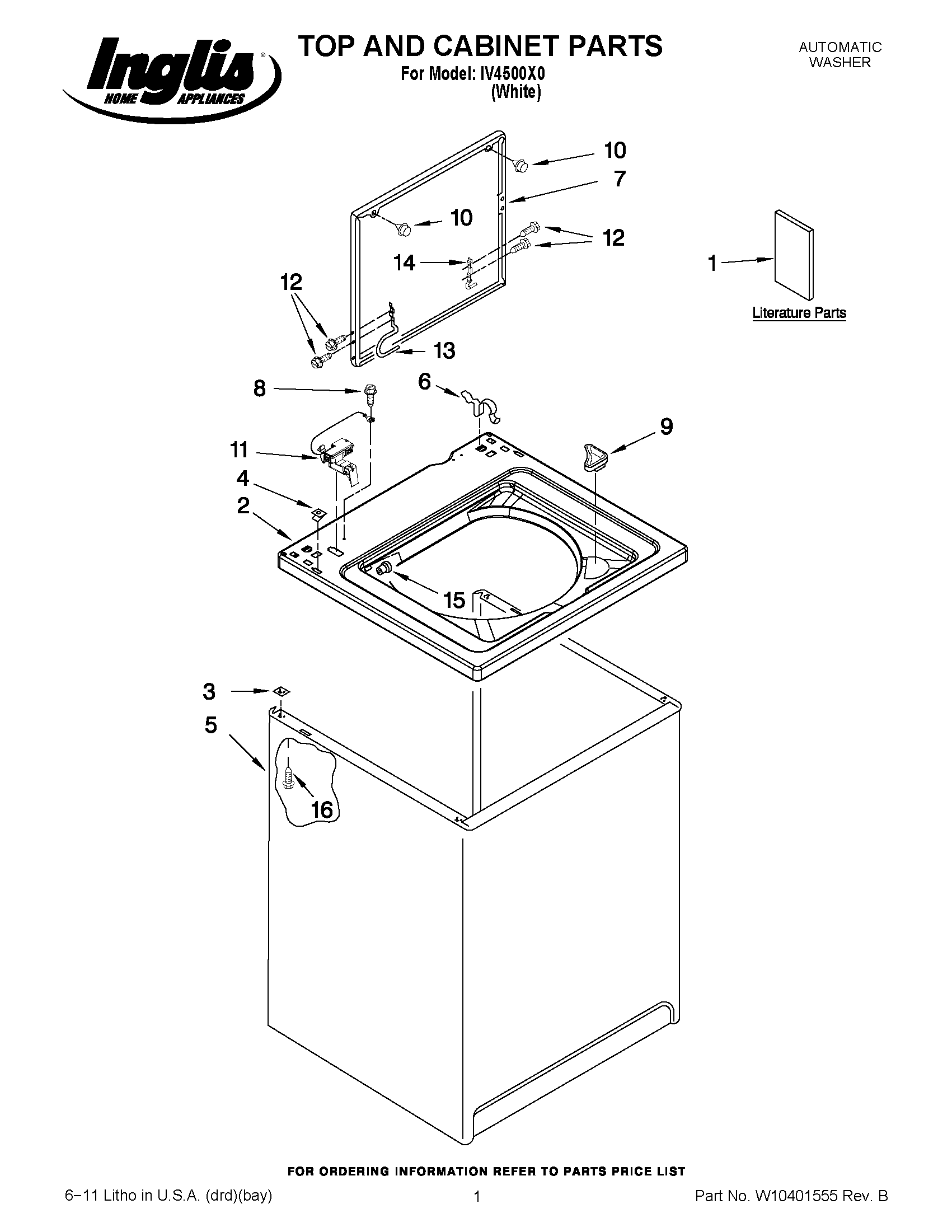

IV4500X0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1WIRING DIAGRAM
1ENERGY GUIDE
1USE & CARE GUIDE (ENGLISH/FRENCH)
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WPW10193857 Whirlpool Lid Assembly
8WP3351614 Whirlpool Screw
9WP3362952 Whirlpool Bezel
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12SCREW
13Hinge, Lid (L.H.)
14WP91770 Whirlpool Hinge
15WP21258 Whirlpool Washer Lid Hinge Bearing
16WP3390631 Whirlpool Screw
