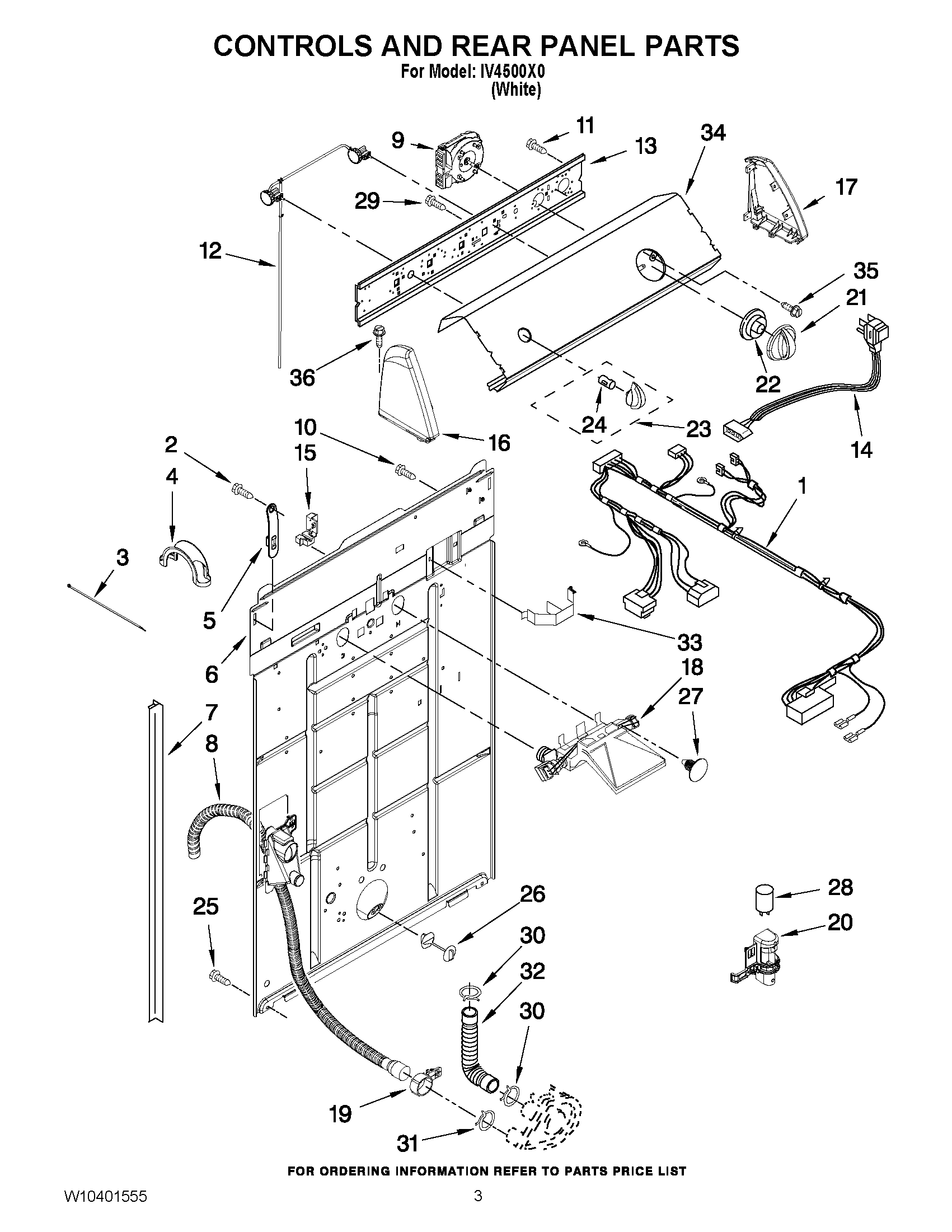

IV4500X0 02 – CONTROLS AND REAR PANEL PARTS

IV4500X0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

IV4500X0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1HARNESS, WIRING
2WP9740848 Whirlpool Dishwasher Screw
3WPW10339879 Whirlpool Wire Tie
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6WPW10194450 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WPW10189267 Whirlpool Drain Hose
9TIMER, CONTROL (60 HZ.) (MOTOR NOT A SERVICE PART)
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH, PRESSURE ASSEMBLY
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17W10820038 Whirlpool Endcap
18WPW10140917 Whirlpool Valve
198541668 Whirlpool Washer Clamp
20Clip, Capacitor
21Knob, Timer
22WP8544947 Whirlpool Dial
23Knob, Control
24WP8536939 Whirlpool Spring Clip
25WP3390631 Whirlpool Screw
26WP8519200 Whirlpool Support Assembly
27Clip, Push-In Retainer
28CAPACITOR
293400073 Whirlpool Screw
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34PANEL, CONSOLE
35WP3400818 Whirlpool Screw
36WP388326 Whirlpool Screw
