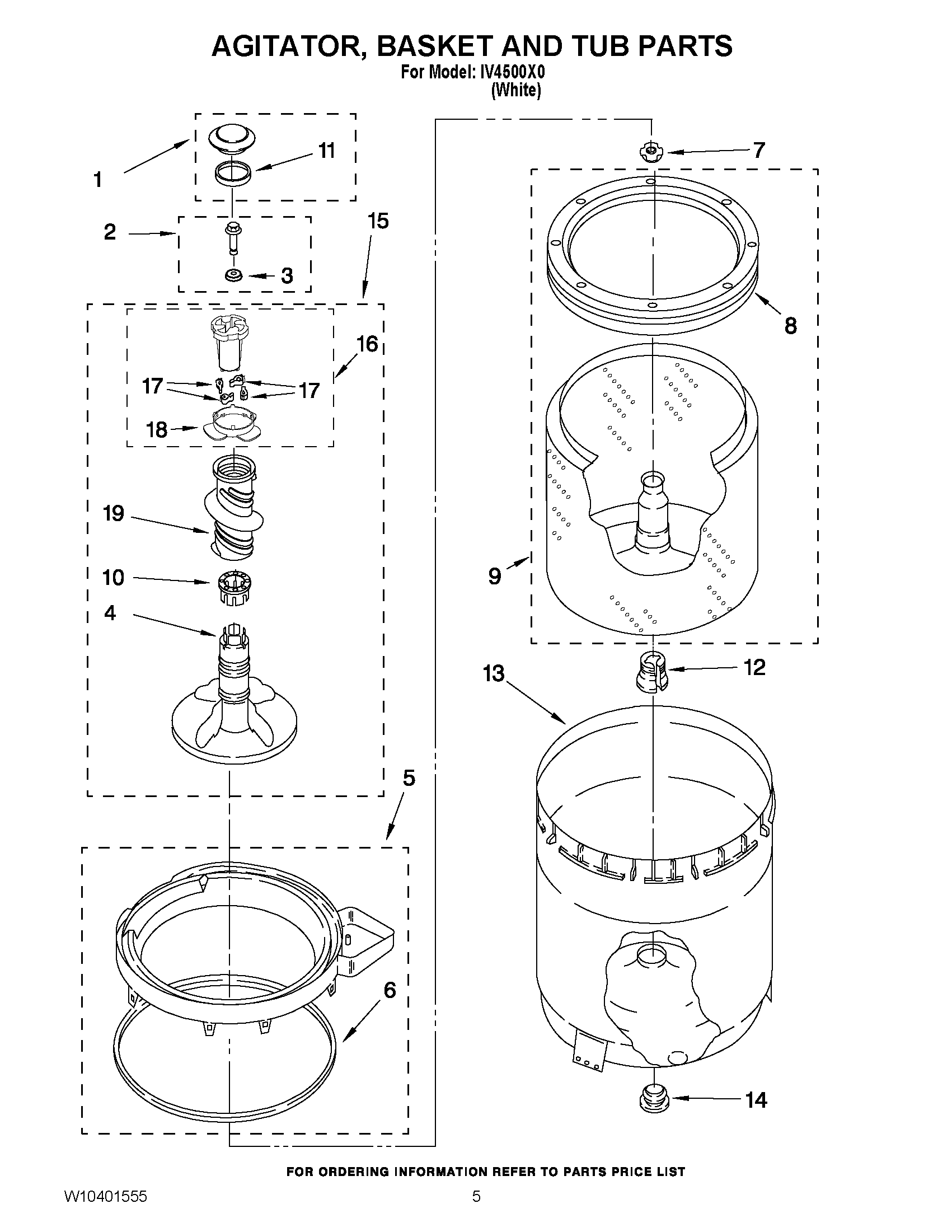

IV4500X0 03 – AGITATOR, BASKET AND TUB PARTS

IV4500X0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

IV4500X0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3362061 Whirlpool Cap
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4WP389386 Whirlpool Agitator Assembly
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP21366 Whirlpool Spanner Nut
8WP387240 Whirlpool Balance Ring
9W10389328 Whirlpool Basket
10285587 Whirlpool Thrust Washer
11WP358912 Whirlpool Gasket
12WP389140 Whirlpool Drive Block or Bell
1363849 Whirlpool Outer Tub Primary Assembly
14W10814296 Whirlpool Washer Center Post Seal Gasket
15285727 Whirlpool Agitator Assembly
16285748 Whirlpool Agitator Cam Kit
1780040 Whirlpool Washer Agitator Dog Kit
18WP3363661 Whirlpool Bearing Cam
19WP3360824 Whirlpool Agitator Auger
