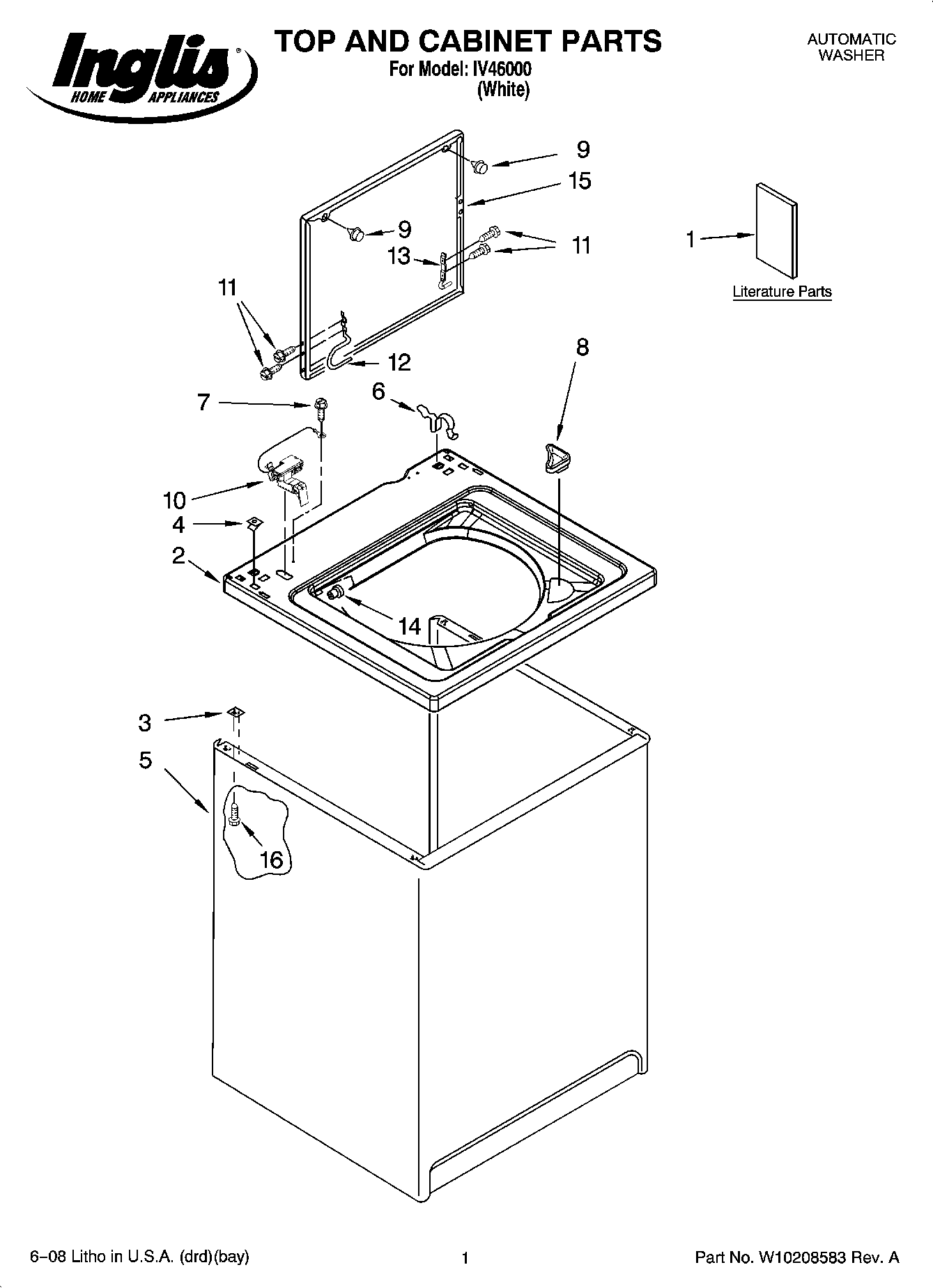

IV46000 01 – TOP AND CABINET PARTS

IV46000 01 – TOP AND CABINET PARTS

Written by

in

IV46000 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Feature Sheet
1Installation Instructions (Spanish)
1Installation Instructions (English/French)
1Wiring Diagram
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3351614 Whirlpool Screw
8WP3362952 Whirlpool Bezel
9WP9724509 Whirlpool Bumper
10WP8318084 Whirlpool Washer Lid Switch Assembly
11SCREW
128318088 Whirlpool Hinge Assembly
13WP91770 Whirlpool Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WPW10193857 Whirlpool Lid Assembly
16WP3390631 Whirlpool Screw
