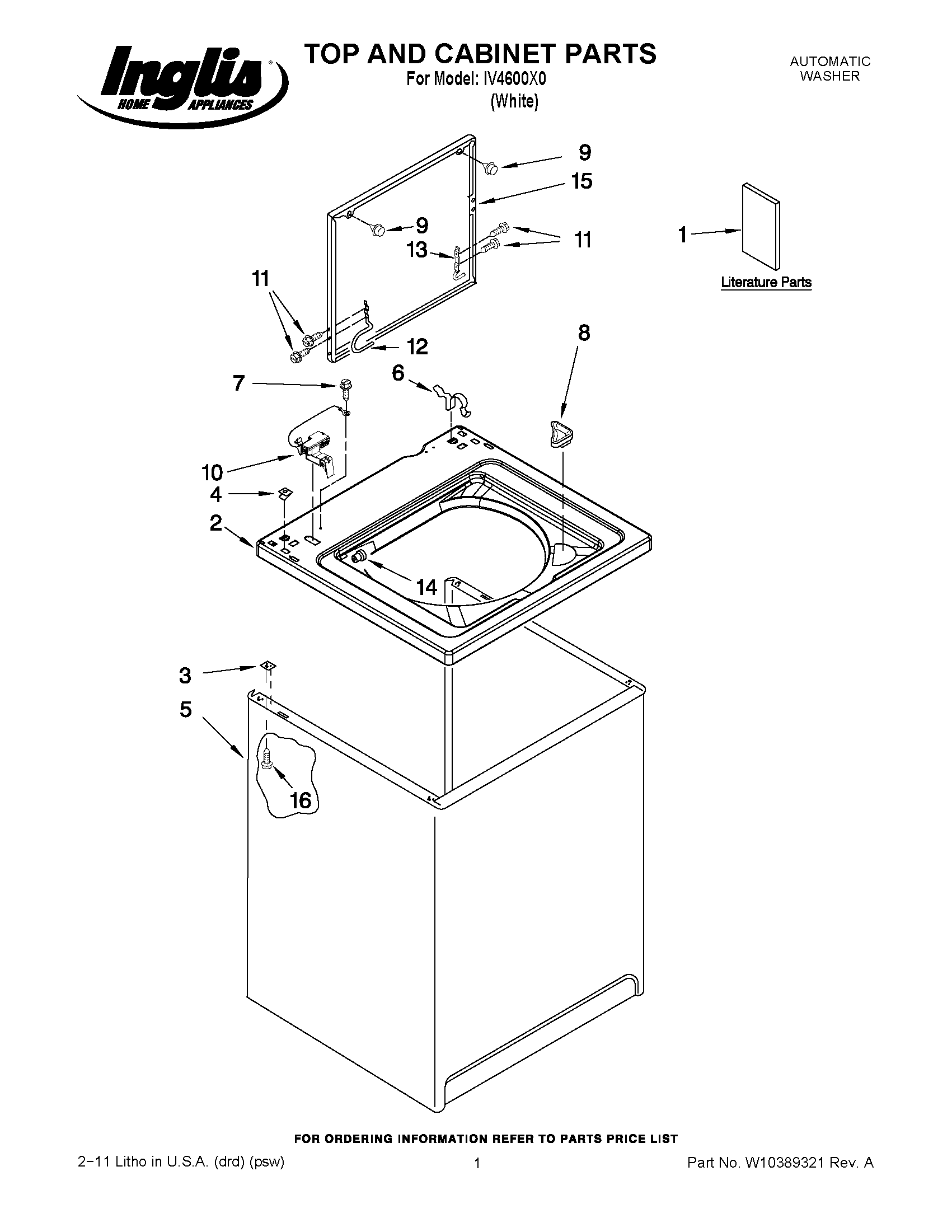

IV4600X0 01 – TOP AND CABINET PARTS

IV4600X0 01 – TOP AND CABINET PARTS

Written by

in

IV4600X0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1WIRING DIAGRAM
1USE & CARE GUIDE (SPANISH)
1USE & CARE GUIDE (ENGLISH/FRENCH)
1INSTALLATION INSTRUCTIONS (SPANISH)
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3351614 Whirlpool Screw
8WP3362952 Whirlpool Bezel
9WP9724509 Whirlpool Bumper
10WP8318084 Whirlpool Washer Lid Switch Assembly
11SCREW
12Hinge, Lid (L.H.)
13WP91770 Whirlpool Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WPW10193857 Whirlpool Lid Assembly
16WP3390631 Whirlpool Screw
