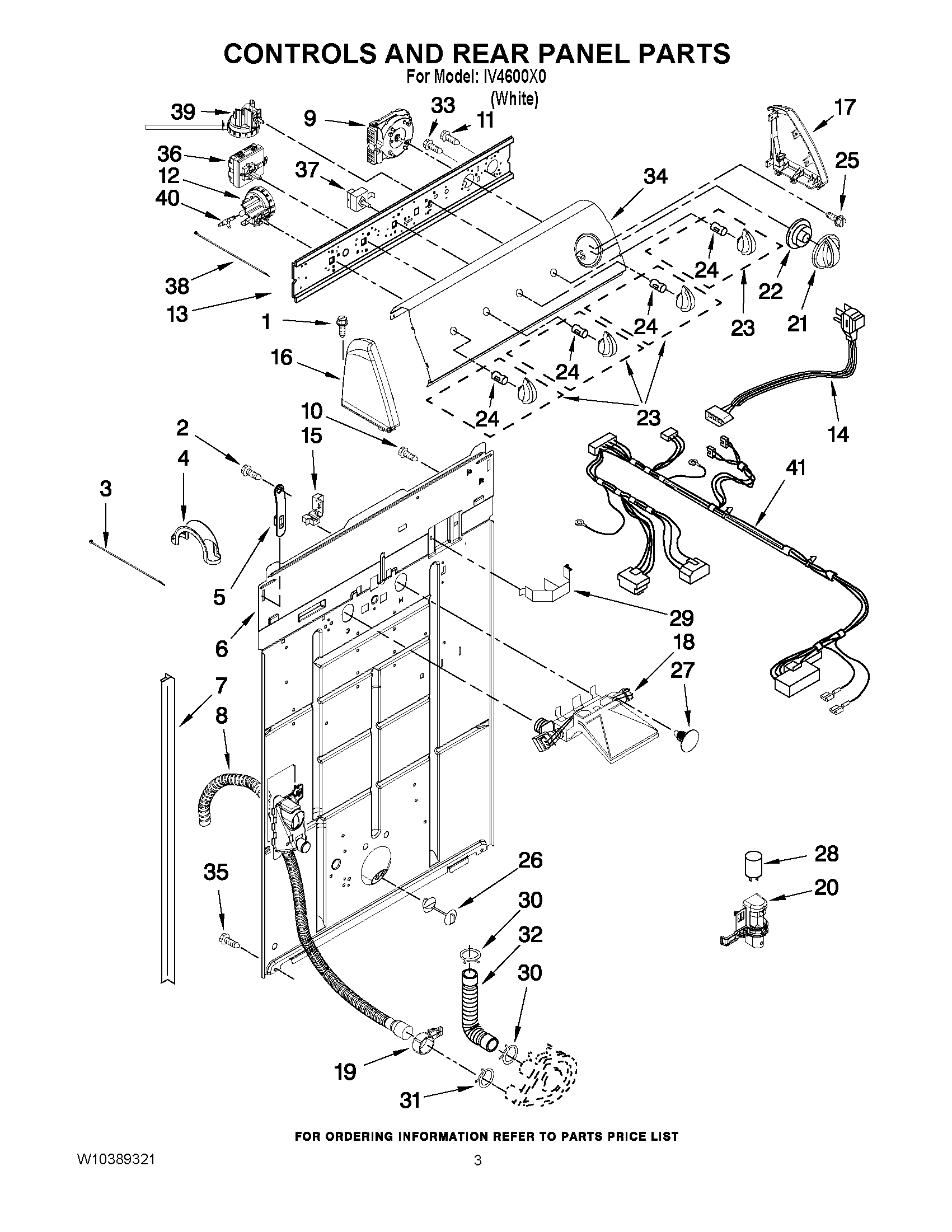

IV4600X0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP388326 Whirlpool Screw
2	WP9740848 Whirlpool Dishwasher Screw
3	WPW10339879 Whirlpool Wire Tie
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10175553 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10379548 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	W10820038 Whirlpool Endcap
18	WPW10144820 Whirlpool Washer Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	Clip, Capacitor
21	Knob, Timer
22	WP8544947 Whirlpool Dial
23	Knob, Control
24	WP8536939 Whirlpool Spring Clip
25	WP3400818 Whirlpool Screw
26	WP8519200 Whirlpool Support Assembly
27	Clip, Push-In Retainer
28	CAPACITOR
29	Clip, Harness & Pressure Hose
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
34	PANEL, CONSOLE
35	WP3390631 Whirlpool Screw
36	WPW10184148 Whirlpool Temperature Switch
37	W10851055 Whirlpool Cycle Switch
38	WPW10334336 Whirlpool Tie Wire
39	WPW10403280 Whirlpool Washer Water Level Switch
40	FITTING, T
41	HARNESS, WIRING
