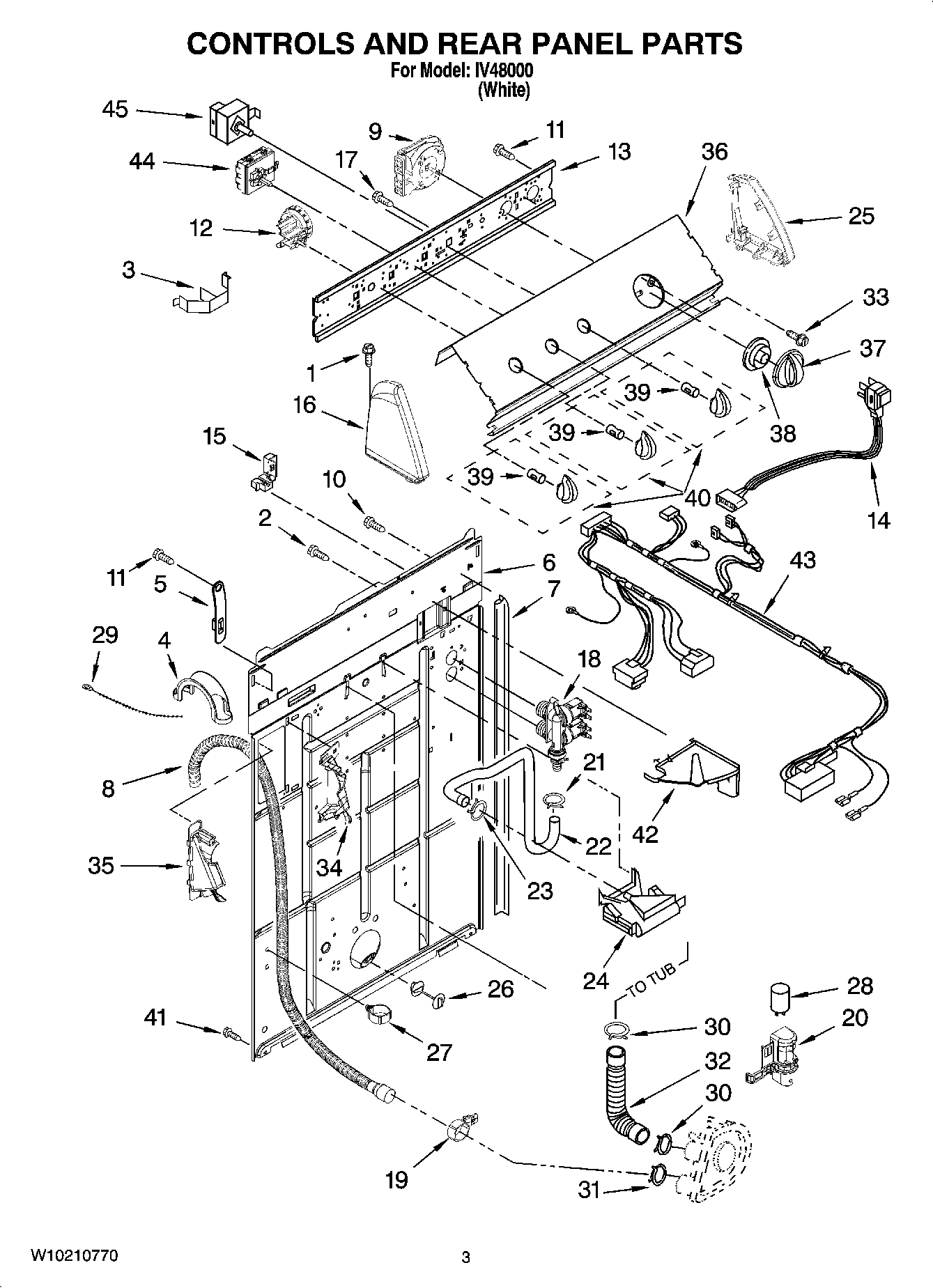

IV48000 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP388326 Whirlpool Screw
2	WP9740848 Whirlpool Dishwasher Screw
3	Clip, Harness & Pressure Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WPW10175553 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337781 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	3400073 Whirlpool Screw
18	WP3979346 Whirlpool Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	W10820038 Whirlpool Endcap
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	CAPACITOR
29	WPW10339879 Whirlpool Wire Tie
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	WP3400818 Whirlpool Screw
35	WPW10096921 Whirlpool Hose
36	Panel, Console
37	Knob, Timer
38	WP8544947 Whirlpool Dial
39	WP8536939 Whirlpool Spring Clip
40	Knob, Control
41	WP3390631 Whirlpool Screw
42	WPL 8539874
43	Wiring, Harness (For Detail See Pages 9 & 10)
44	WPW10184148 Whirlpool Temperature Switch
45	W10851055 Whirlpool Cycle Switch
