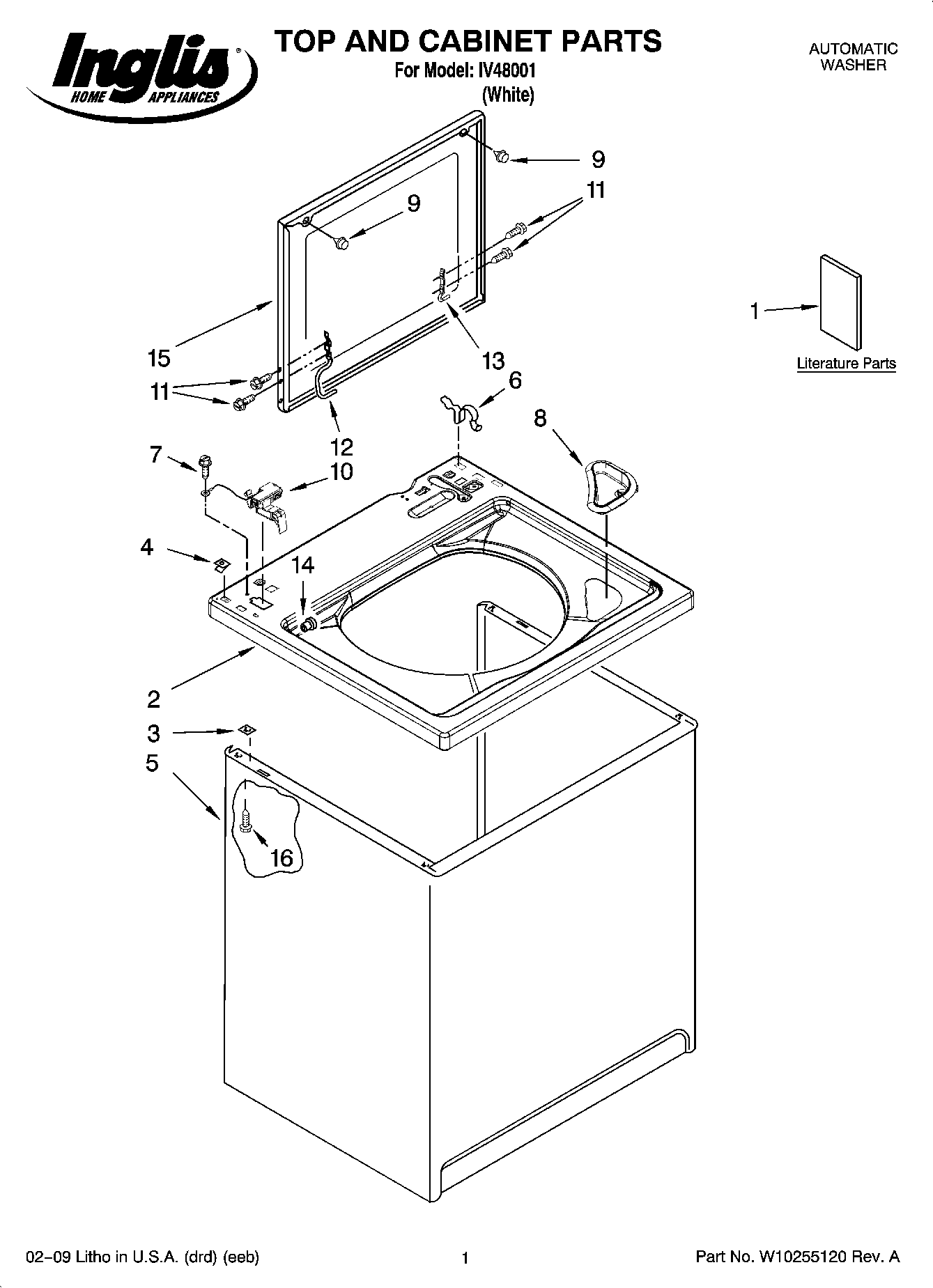

IV48001 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
1Installation Instructions (Spanish)
1Installation Instructions (English/French)
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3351614 Whirlpool Screw
8WPW10192089 Whirlpool Washer Bleach Dispenser
9WP9724509 Whirlpool Bumper
10WP8318084 Whirlpool Washer Lid Switch Assembly
11SCREW
12Hinge, Lid (L.H.)
13WP91770 Whirlpool Hinge
14Bearing, Lid Hinge (2)
15Lid
16W10165554 Whirlpool Screw
