IV4800X0 01 – TOP AND CABINET PARTS
Written by
in

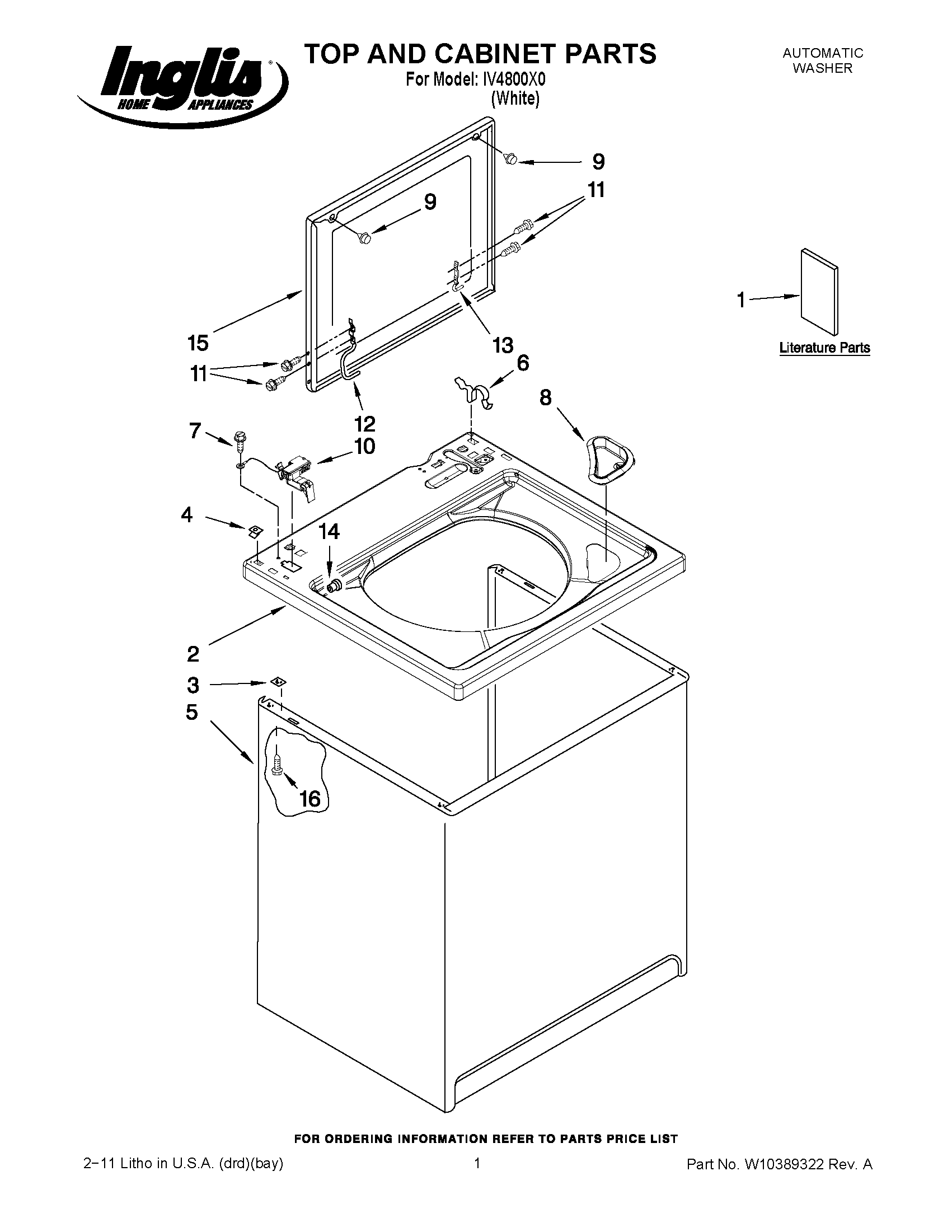

IV4800X0 01 – TOP AND CABINET PARTS
Products
Position
Product
1
WIRING DIAGRAM
1
USE & CARE GUIDE (SPANISH)
1
USE & CARE GUIDE (ENGLISH/FRENCH)
1
INSTALLATION INSTRUCTIONS (SPANISH)
1
INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
2
Top
3
WP62750 Whirlpool Spacer
4
WP357213 Whirlpool Hinge Stopper
5
63424 Whirlpool Cabinet Assembly
6
WP62780 Whirlpool Cabinet Clip
7
WP3351614 Whirlpool Screw
8
WPW10192089 Whirlpool Washer Bleach Dispenser
9
WP9724509 Whirlpool Bumper
10
WP8318084 Whirlpool Washer Lid Switch Assembly
11
SCREW
12
Hinge, Lid (L.H.)
13
WP91770 Whirlpool Hinge
14
Bearing, Lid Hinge (2)
15
Lid
16
WP3390631 Whirlpool Screw
←
