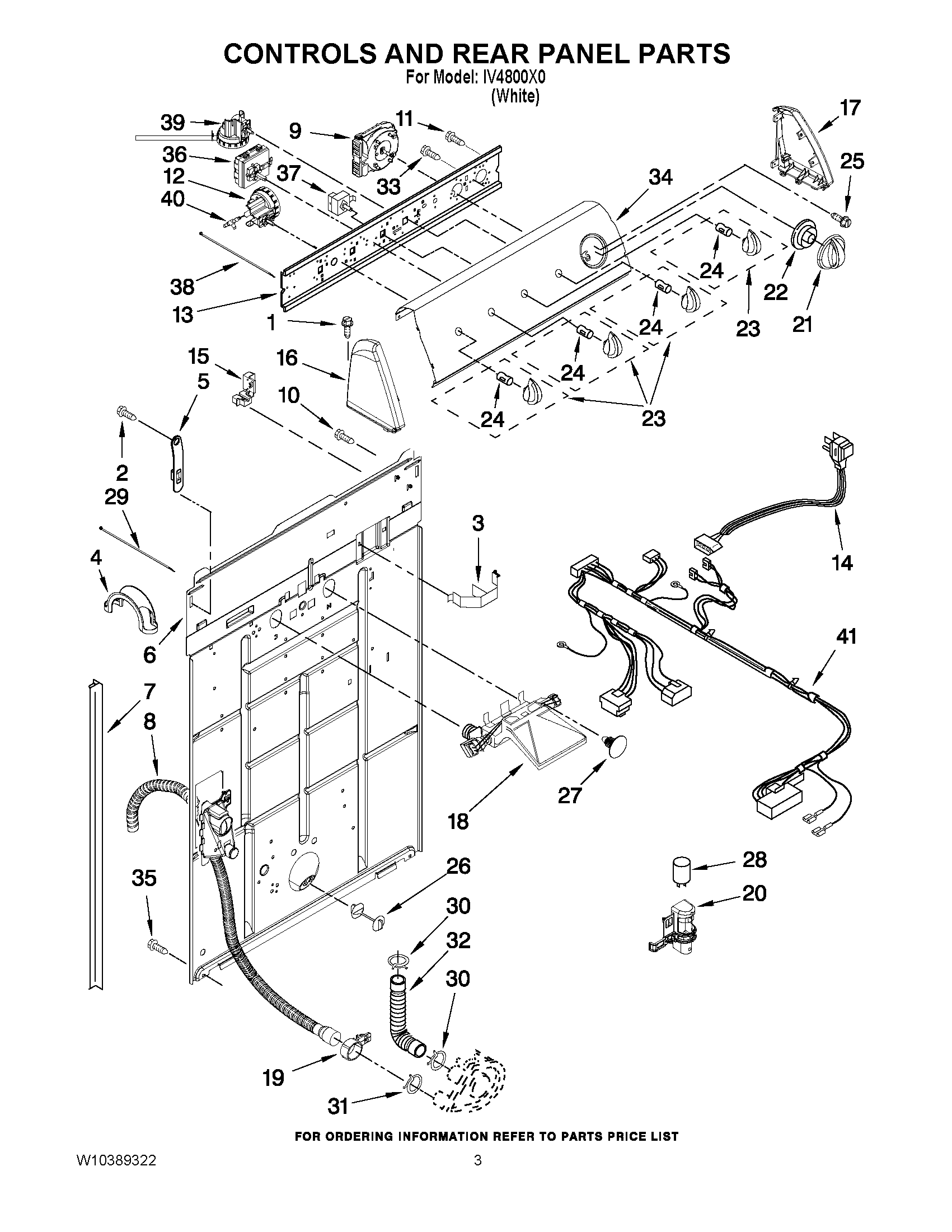

IV4800X0 02 – CONTROLS AND REAR PANEL PARTS

IV4800X0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

IV4800X0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP388326 Whirlpool Screw
2WP9740848 Whirlpool Dishwasher Screw
3Clip, Harness & Pressure Hose
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6WPW10194450 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WPW10189267 Whirlpool Drain Hose
9WPW10175553 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10379548 Whirlpool Washer Water Level Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17W10820038 Whirlpool Endcap
18WPW10144820 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20Clip, Capacitor
21Knob, Timer
22WP8544947 Whirlpool Dial
23Knob, Control
24WP8536939 Whirlpool Spring Clip
25WP3400818 Whirlpool Screw
26WP8519200 Whirlpool Support Assembly
27Clip, Push-In Retainer
28CAPACITOR
29WPW10339879 Whirlpool Wire Tie
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
333400073 Whirlpool Screw
34PANEL, CONSOLE
35WP3390631 Whirlpool Screw
36WPW10184148 Whirlpool Temperature Switch
37W10851055 Whirlpool Cycle Switch
38WPW10334336 Whirlpool Tie Wire
39WPW10403280 Whirlpool Washer Water Level Switch
40FITTING, T
41W10362917 Whirlpool Wire Harness
