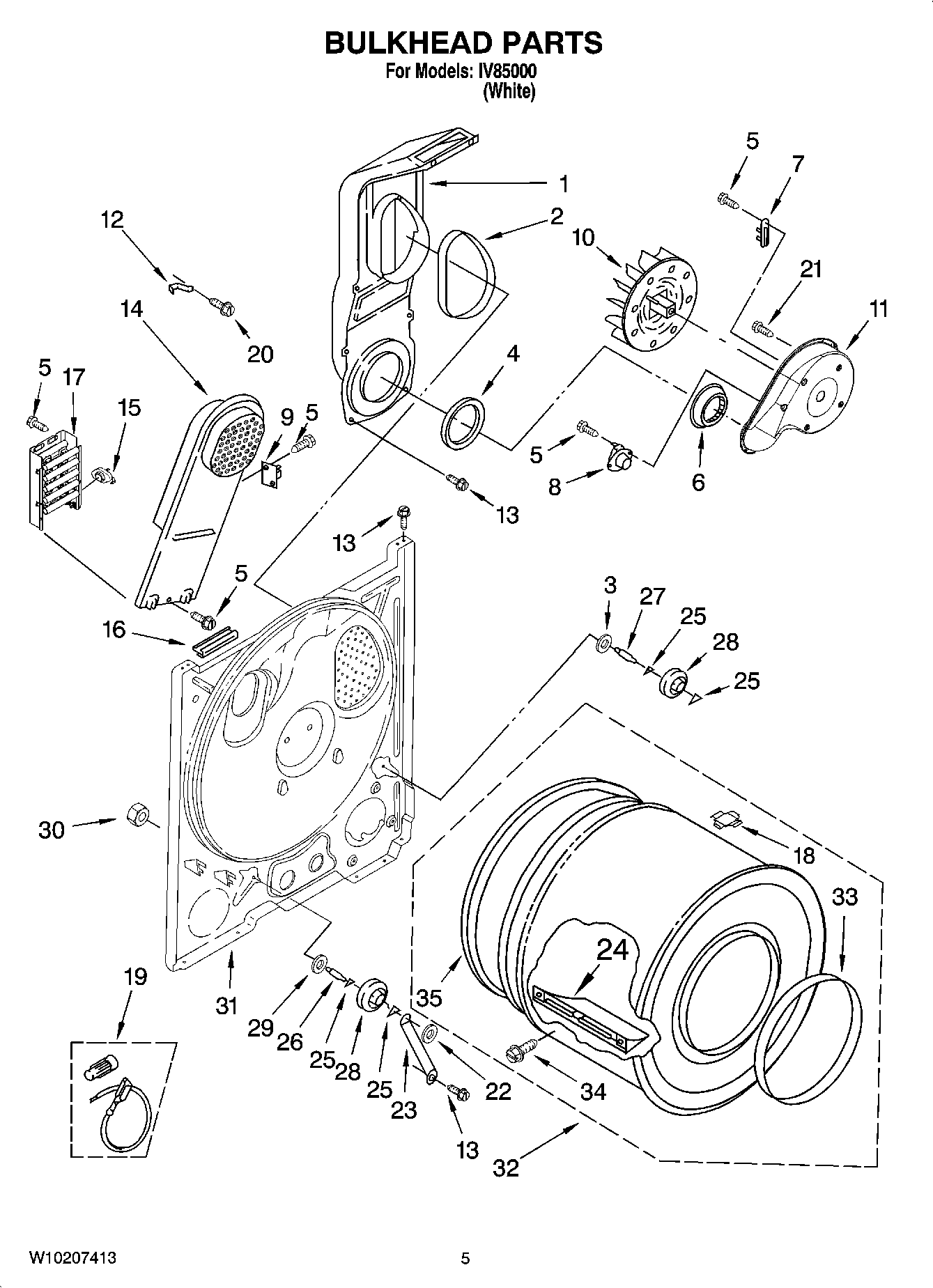

IV85000 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

IV85000 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

IV85000 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
ACCESSORY PARTS
3406839 Whirlpool Drying Rack
4392065 Whirlpool Dryer Maintenance Kit
W11224254 Whirlpool Test Kit
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
1279505 Whirlpool Chute
2SEAL
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16686889 Whirlpool Pad
17Element, Heater
188066086 Whirlpool Plug
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21WP488729 Whirlpool Refrigerator Door Screw
22WP90296 Whirlpool Clip
23Bracket, Support
24WP342847 Whirlpool Drum Baffle
25WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26SHAFT SUPPORT ROLLER DRYER
27SHAFT SUPPORT ROLLER DRYER
28349241T Whirlpool Dryer Drum Support Roller Kit
29WP348197 Whirlpool Washer Assembly
30WP3359452 Whirlpool Nut
31BULKHEAD
32697760 Whirlpool Drum Assembly Primary OS2
33WP3394509 Whirlpool Bearing Ring
34WPW10109200 Whirlpool Screw
35239087 Whirlpool Dryer Rear Drum Seal Green Stitches
